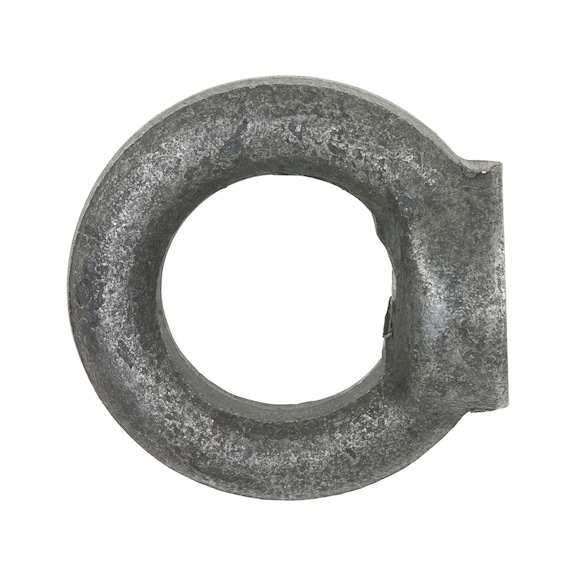

Ring Nut DIN 582 Steel C15E | M16 Load Capacity 700kg | Plain Surface Finish | @Pack of 5 | by Wurth
The Ring Nut DIN 582 Steel C15E is designed for heavy-duty lifting with a robust M16 load capacity of 700kg. Ideal for industrial and construction applications, this nut is made from durable case hardening steel and features a plain surface finish. Perfect for rigging, hoisting, and anchoring, it ensures safety and compliance in all your lifting needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 Steel C15E | M16 Load Capacity 700kg | Plain Surface Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 3959016
Alternatively Known As: Eye Nut, Lifting Ring Nut, DIN 582 Eye Bolt Nut, Load Ring Nut
Technical Specifications
- Thread type x nominal diameter (d): M16
- Internal diameter (d1): 35 mm
- Outer diameter (d2): 63 mm
- Diameter of contact surface (d3): 35 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 700 kg
- Nominal diameter: 16 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 35mm x 35mm x 63mm
- Weight: 0.2 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel, 1.1141, C15E for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Used for lifting and securing loads in industrial and construction settings
- Suitable for rigging, hoisting, and anchoring applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Ring Nut DIN 582 Steel C15E Plain M16 is available for immediate purchase, ideal for industrial lifting and securing applications.
