Ring Nut DIN 582 Steel C15E | M20 Forged Eye Nut | 1200 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth

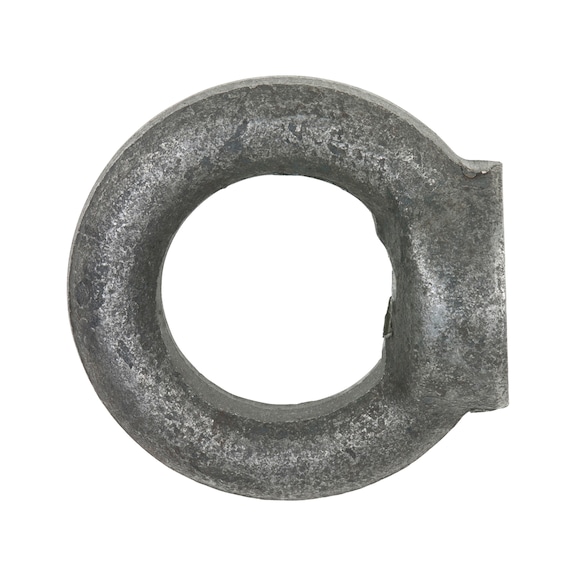

The Ring Nut DIN 582 Steel C15E is a robust M20 forged eye nut designed for industrial lifting and rigging applications. With a load capacity of 1200 kg and made from durable case hardening steel, it ensures safety and reliability in construction and engineering projects. Its plain finish and RoHS compliance make it an ideal choice for general-purpose load securing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 Steel C15E | M20 Forged Eye Nut | 1200 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 3959020
Alternatively Known As: Eye Nut M20, Lifting Ring Nut, DIN 582 Eye Bolt Nut, Steel Ring Nut
Technical Specifications
- Thread type x nominal diameter (d): M20
- Internal diameter (d1): 40 mm
- Outer diameter (d2): 72 mm
- Diameter of contact surface (d3): 40 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 1200 kg
- Nominal diameter: 20 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 40mm x 40mm x 72mm
- Weight: 0.3 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided instructions to ensure safety and compliance.
Applications
- Industrial lifting and rigging
- Construction and engineering projects
- Machinery and equipment fastening
- General purpose load securing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Nut DIN 582 Steel C15E Plain M20 is available for immediate purchase, ideal for industrial and construction applications.
