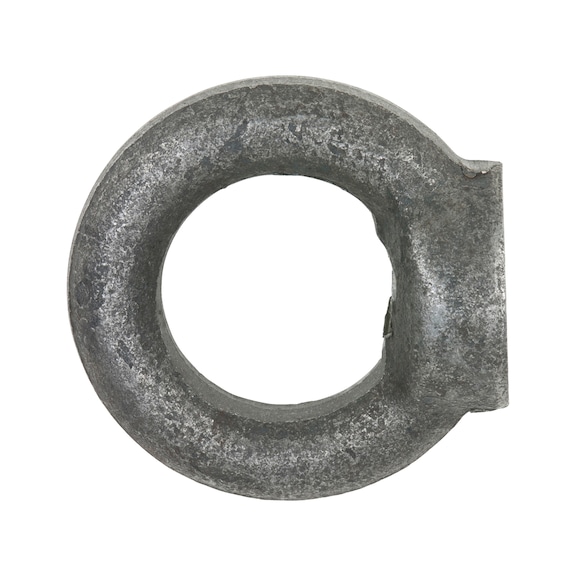

Ring Nut DIN 582 Steel C15E | M24 Thread | 1800 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Nut DIN 582 Steel C15E is designed for industrial lifting and rigging, featuring a robust M24 thread and an impressive 1800 kg load capacity. Made from durable case hardening steel with a plain finish, this nut is RoHS-compliant and ideal for construction and machinery fastening applications, ensuring safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 Steel C15E | M24 Thread | 1800 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 3959024
Alternatively Known As: Eye Nut, Lifting Ring Nut, DIN 582 Eye Bolt Nut, Load Ring Nut
Technical Specifications
- Thread type x nominal diameter (d): M24
- Internal diameter (d1): 50 mm
- Outer diameter (d2): 90 mm
- Diameter of contact surface (d3): 50 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 1800 kg
- Nominal diameter: 24 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 50mm x 50mm x 90mm
- Weight: 0.5 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided instructions to ensure safety and compliance.
Applications
- Industrial lifting and rigging
- Construction and structural applications
- Machinery and equipment fastening
- General purpose load securing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Nut DIN 582 Steel C15E Plain M24 is available for immediate purchase, ideal for industrial and construction lifting applications.
