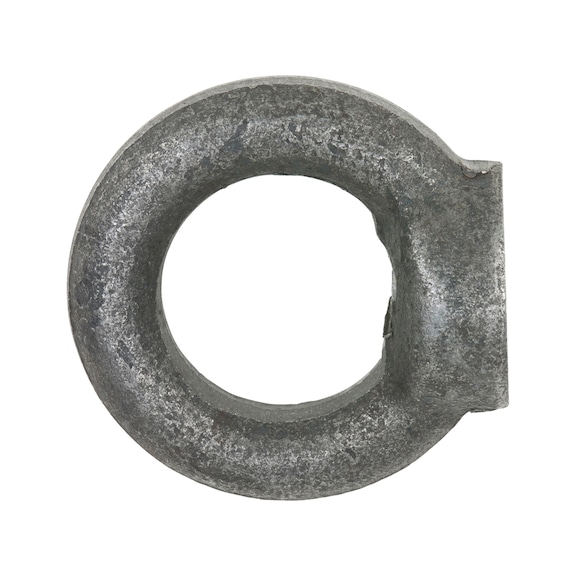

Ring Nut DIN 582 Steel C15E | M30 Forged Eye Nut | 3200 kg Load Capacity | Plain Surface | by Wurth
The Ring Nut DIN 582 Steel C15E is a robust M30 forged eye nut designed for industrial lifting and rigging applications. With a load capacity of 3200 kg and made from durable case hardening steel, it ensures safety and reliability in construction and machinery fastening. Its plain surface finish and RoHS compliance make it an ideal choice for professionals seeking quality and compliance in their projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 Steel C15E | M30 Forged Eye Nut | 3200 kg Load Capacity | Plain Surface | by Wurth
Brand: Wurth
SKU: 3959030
Alternatively Known As: DIN 582 Eye Nut, Steel Ring Nut M30, Forged Eye Nut
Technical Specifications
- Thread type x nominal diameter (d): M30
- Internal diameter (d1): 60 mm
- Outer diameter (d2): 108 mm
- Diameter of contact surface (d3): 65 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 3200 kg
- RoHS-compliant: Yes
- Dimensions (H x L x W): 60mm x 108mm x 108mm
- Weight: 1.5 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided instructions to ensure safety and compliance.
Applications
- Industrial lifting and rigging
- Construction and structural applications
- Machinery and equipment fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Ring Nut DIN 582 Steel C15E Plain M30 is available for immediate purchase, ideal for industrial and construction lifting applications.
