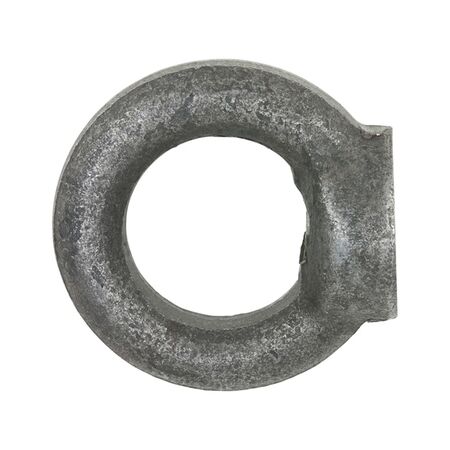

Ring Nut DIN 582 Steel C15E | M8 Forged Eye Nut | 140 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Nut DIN 582 Steel C15E is a robust M8 forged eye nut designed for lifting and securing loads in industrial and construction settings. With a load capacity of 140 kg and a durable plain finish, this nut is RoHS-compliant and ideal for machinery and rigging applications. Ensure safety and compliance with this reliable lifting solution, perfect for trained personnel installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 Steel C15E | M8 Forged Eye Nut | 140 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 395908
Alternatively Known As: Eye Nut, Lifting Ring Nut, DIN 582 Eye Bolt Nut, Steel Eye Nut M8
Technical Specifications
- Thread type x nominal diameter (d): M8
- Internal diameter (d1): 20 mm
- Outer diameter (d2): 36 mm
- Diameter of contact surface (d3): 20 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 140 kg
- RoHS-compliant: Yes
- Dimensions (H x L x W): 20mm x 20mm x 36mm
- Weight: 0.05 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided instructions to ensure safety and compliance.
Applications
- Used for lifting and securing loads in industrial and construction settings
- Suitable for use in machinery, rigging, and structural applications
Standards & Compliance
- Complies with AS/NZS 1252 for lifting and rigging hardware
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Ring Nut DIN 582 Steel C15E Plain M8 is available for immediate purchase, ideal for industrial lifting and securing applications.
