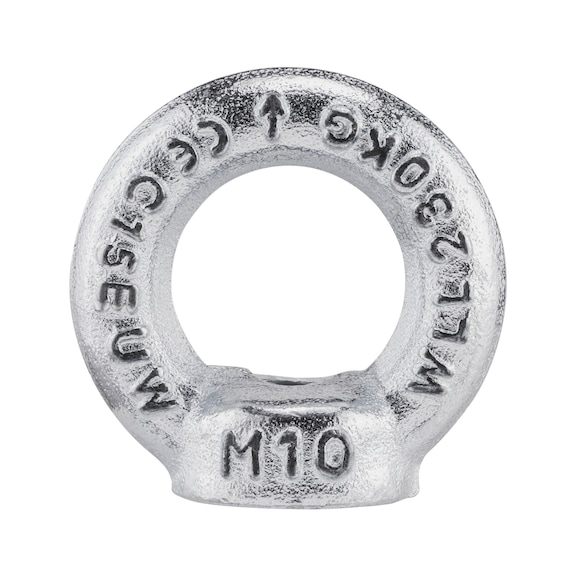

Ring Nut DIN 582 | Steel C15E | Zinc-Plated & Blue Passivated | Load Capacity 340 kg | @Pack of 5 | by Wurth
The Ring Nut DIN 582 is crafted from durable Steel C15E and features a zinc-plated, blue passivated finish, ensuring excellent corrosion resistance. With a load capacity of 340 kg, it's perfect for secure fastening in lifting and rigging applications. Ideal for industrial and construction tasks, this nut is RoHS-compliant and designed for high performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 | Steel C15E | Zinc-Plated & Blue Passivated | Load Capacity 340 kg | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 395912
Alternatively Known As: DIN 582 Ring Nut, Lifting Eye Nut, Steel Ring Fastener, Zinc Plated Eye Nut
Technical Specifications
- Thread type x nominal diameter (d): M12
- Internal diameter (d1): 30 mm
- Outer diameter (d2): 54 mm
- Diameter of contact surface (d3): 30 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Zinc plated with blue passivation
- Load capacity (F max): 340 kg
- RoHS-compliant: Yes
- Dimensions (H x L x W): 30mm x 54mm x 54mm
- Weight: 0.1 kg
Key Features
- Ring fasteners stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel (C15E) for durability
- Zinc plated with blue passivation for corrosion resistance
- Compliant with RoHS standards
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Used for secure fastening in lifting and rigging applications
- Suitable for industrial, construction, and mechanical assembly tasks
- Ideal for use where high load capacity and corrosion resistance are required
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Nut DIN 582 Steel C15E Zinc-Plated Blue Passivated M12 5 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
