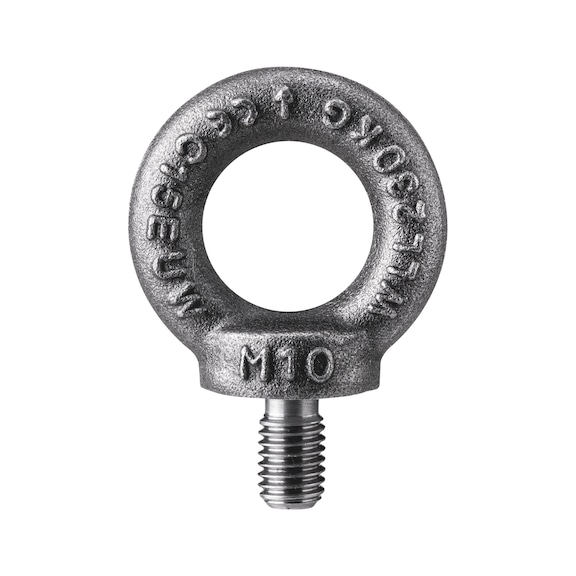

Ring Screw DIN 580 | Case Hardening Steel C15E | 140 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Screw DIN 580 is crafted from durable case hardening steel C15E, offering a robust 140 kg load capacity, making it ideal for lifting and rigging applications. With a plain surface finish and compliance with DIN 580 standards, this pack of 5 screws ensures reliable attachment points for hoisting equipment in industrial and construction settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Screw DIN 580 | Case Hardening Steel C15E | 140 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 295908
Alternatively Known As: Lifting eye bolt, Ring bolt, Eye screw, DIN 580 eye bolt
Technical Specifications
- Thread type x nominal diameter: M8
- Diameter of contact surface: 20 mm
- Outer diameter: 36 mm
- Internal diameter: 20 mm
- Height: 36 mm
- Length: 13 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Max. load capacity: 140 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Standard metric thread
- Thread length: 11.5 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 36mm x 13mm x 36mm
- Weight: 0.05 kg
Key Features
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard
- Metric thread with pitch 1.25 mm
Professional Installation Requirements
- Installation should be performed by trained personnel following the installation instructions to ensure safety and compliance.
Applications
- Lifting and rigging applications
- Securing loads in industrial and construction settings
- Attachment points for hoisting equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy.
Available Now
Wurth Ring Screw DIN 580 Steel C15E Plain M8 5 PCS is available for immediate purchase, ideal for industrial lifting and securing applications.
