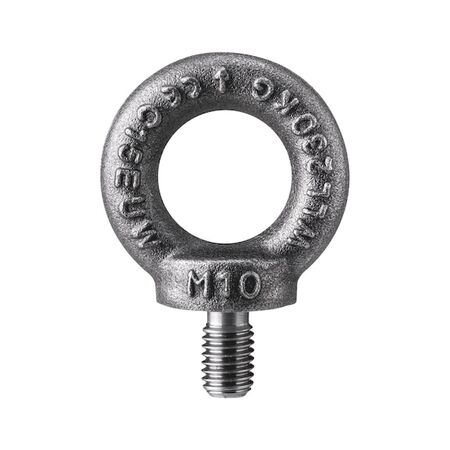

Ring Screw DIN 580 | Case Hardening Steel C15E | 75 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Screw DIN 580 is crafted from durable case hardening steel C15E, offering a robust 75 kg load capacity, making it ideal for lifting and rigging applications. With a plain surface finish and compliance with DIN 580 standards, this ring screw is perfect for securing loads in industrial and construction settings, ensuring safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Screw DIN 580 | Case Hardening Steel C15E | 75 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 295906
Alternatively Known As: Lifting eye bolt, Ring bolt, Eye screw, DIN 580 lifting ring
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Diameter of contact surface (d2): 20 mm
- Outer diameter (d3): 36 mm
- Internal diameter (d4): 20 mm
- Height (h1): 36 mm
- Length (l1): 13 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Max. load capacity: 75 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Thread length (metric thread): 11.5 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 36mm x 13mm x 36mm
- Weight: 0.05 kg
Key Features
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard
- RoHS-compliant
- Max load capacity of 75 kg
- Metric thread with 1 mm pitch and standard metric thread form
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and rigging applications
- Securing loads in industrial and construction settings
- Attachment points for hoisting equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Ring Screw DIN 580 Steel C15E Plain 5 PCS is available for immediate purchase. Ideal for industrial lifting and securing applications.
