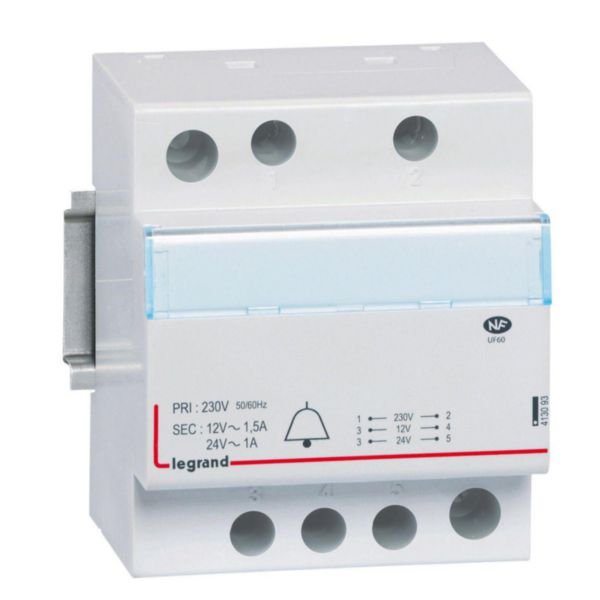

Ringer Transformer | 230 V Input | 24-12 V Output | 24-18 VA Power | @EA of 1 | by Legrand
The Ringer Transformer is designed for reliable control and signaling applications, featuring a 230 V input with dual 24 V and 12 V outputs. Ideal for switchboards and power cabinets, this transformer ensures safety with overload and short-circuit protection, making it perfect for both residential and commercial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ringer Transformer | 230 V Input | 24-12 V Output | 24-18 VA Power | @EA of 1 | by Legrand
Brand: Legrand
SKU: 413093
Alternatively Known As: Bell Transformer, Ringer Bell Transformer, DIN Rail Transformer, Control Transformer
Technical Specifications
- Primary voltage: 230 V
- Secondary voltages: 24 V and 12 V
- Secondary amperage: 1.5 A
- Max output power: 18 W
- Max output current: 24 A
- Type: Standard bell ringing transformer
- Mounting: Surface and flush-mounted
- Short-circuit protected: Yes
- Temperature protection: Yes
- Number of modules: 4
- Dimensions (H x L x W): 84mm x 72mm x 66mm
- Weight: 0.5 kg
Key Features
- Conforms to IEC / EN 61558 - 2 - 8 standards
- Protected against overloads and short circuits
- Wall or rail mounting for 4 modules
- Secondary voltages: 24 V and 12 V
- Power rating: 24-18 VA
- Short-circuit and temperature protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Suitable for use in switchboards and power cabinets
- Control and signalling applications
- Bell ringing transformer for residential and commercial buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient transformer design reduces power loss
- Durable construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
The Legrand Ringer Transformer 230 V / 24-12 V - 24-18 VA is available for immediate purchase, ideal for use in control and signalling within switchboards and power cabinets.
