Trade Discount 25%

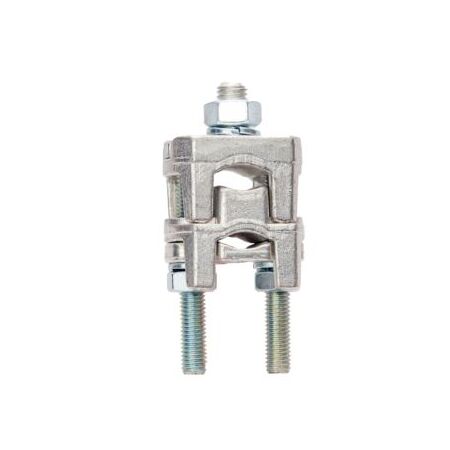

Riser Clamp Double 10-95mm² Split Bolt Nickel Brass Bovara
Bovara double riser clamp features nickel plated brass split bolt construction for 10-95mm² cable. Ideal for service mains connections at private poles and risers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Double Riser Clamp, Split-Bolt Riser Clamp, Nickel-Plated Brass Cable Clamp
Technical Specifications
- Model: G95D
- Cable Size: 10–95 mm²
- Connection Type: Double connection
- Connector Type: Split bolt
- Material: Nickel-plated brass
- Standard Pack Size: 1
- Intended Use: Service mains connections at private poles and risers
- Dimensions (H x L x W): 72mm x 24mm x 24mm
- Weight: 0.18 kg
Key Features
- Accommodates cable sizes from 10 to 95 mm²
- Double connection configuration for joining or tapping conductors
- Nickel-plated brass construction provides conductivity and corrosion resistance
- Split-bolt design for secure conductor connections
- Suitable for private pole, riser and low-voltage service installations
Professional Installation Requirements
- Installation must be completed by a licensed electrician or suitably authorised electrical contractor in accordance with AS/NZS 3000, applicable state or territory service and installation rules, and local electricity distributor requirements.
Applications
- Service mains connections at private poles
- Electrical cable risers
- Overhead conductor joining and tapping
- Low-voltage service and distribution installations
Standards & Compliance
- AS/NZS 3000 installation and wiring requirements apply
- Applicable state or territory electricity service and installation rules apply
Environmental Benefits
- Brass components can be recovered through metal recycling at end of service life
- Nickel-plated construction provides durability and corrosion resistance, helping extend service life and reduce replacement waste
Warranty Information
One-year quality assurance against manufacturing defects; warranty terms and exclusions may apply.
Available Now
Available through authorised Bovara distributors in Australia.
