Trade Discount 25%

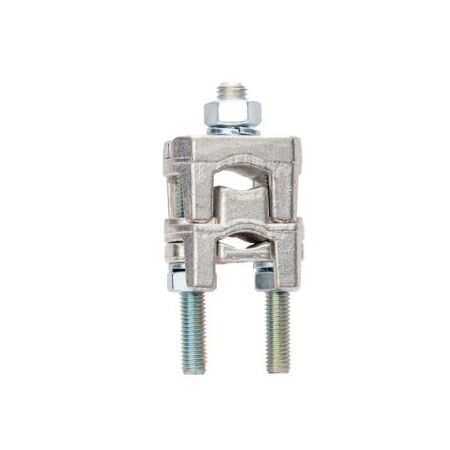

Riser Clamp Double 16-150mm² Split Bolt Nickel Brass Bovara
Bovara double riser clamp features nickel plated brass split bolt construction for 16-150mm² cable. Ideal for service mains connections at private poles and risers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Double Riser Clamp, Split-Bolt Riser Clamp, Nickel-Plated Brass Cable Clamp, Overhead Service Cable Connector
Technical Specifications
- Cable Size Range: 16–150 mm²
- Connection Type: Double split-bolt connection
- Material: Nickel-plated brass
- Connector Type: Split bolt
- Application: Overhead conductor joining, tapping and service mains connections
- Pack Quantity: 1 piece
- Product Code: G150D
- Dimensions (H x L x W): 84mm x 26mm x 40mm
- Weight: 0.45 kg
Key Features
- Double connection for riser and service mains applications
- Nickel-plated brass construction for corrosion resistance and durability
- Suitable for 16–150 mm² cable
- Designed for private poles, overhead consumer mains and cable risers
- Suitable for joining or tapping compatible overhead conductors
Professional Installation Requirements
- Installation must be performed by a licensed electrician or authorised service provider in accordance with the manufacturer’s instructions, conductor preparation requirements, specified tightening procedures and the relevant electricity distributor’s service rules.
Applications
- Service mains connections at private poles
- Overhead consumer mains and aerial service connections
- Electrical cable risers and point-of-attachment installations
- Joining or tapping compatible overhead conductors
- Residential, commercial and utility electrical installations
Standards & Compliance
- Electrical installation work should comply with AS/NZS 3000:2018 and the applicable electricity distributor’s service and installation rules.
- Where relevant to the overhead line arrangement, installation should also follow applicable AS/NZS 7000 requirements.
Environmental Benefits
- Nickel-plated brass is a durable metal material that can be recycled at end of service life.
- Corrosion-resistant construction can extend service life and reduce replacement-related material waste.
Warranty Information
Bovara provides a 12-month warranty against defects, faulty workmanship, materials or design for non-consumer customers, subject to the applicable warranty conditions. Australian Consumer Law guarantees may also apply.
Available Now
Available through authorised Bovara distributors in Australia.
