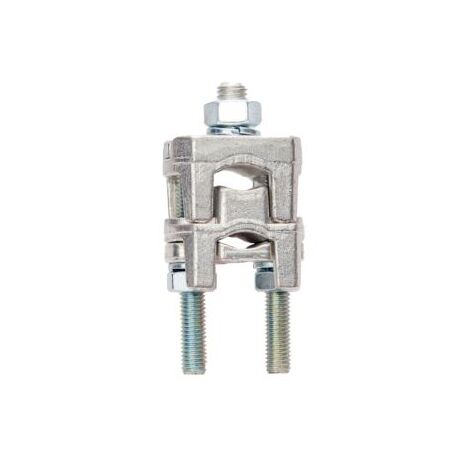

Riser Clamp Double 50-240mm² Split Bolt Nickel Brass Bovara
Bovara double riser clamp features nickel plated brass split bolt construction for 50-240mm² cable. Ideal for service mains connections at private poles and risers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Double Riser Clamp, Split-Bolt Riser Clamp, Service Mains Cable Clamp, Nickel-Plated Brass Cable Clamp
Technical Specifications
- Model: G240D
- Cable Size Range: 50–240 mm²
- Connection Type: Double split-bolt connection
- Material: Nickel-plated brass
- Product Height: 116 mm
- Product Length: 35 mm
- Standard Product Classification: UNSPSC 39121700
- Product Type: Studded bi-metal riser clamp
- Dimensions (H x L x W): 116mm x 35mm x 35mm
- Weight: 0.45 kg
Key Features
- Double connection configuration for joining or tapping compatible overhead conductors
- Nickel-plated brass construction for conductivity and corrosion resistance
- Split-bolt connection design
- Suitable for cable sizes from 50 to 240 mm²
- Designed for service mains connections at private poles and electrical risers
- Suitable for low-voltage electrical distribution applications
Professional Installation Requirements
- Installation must be carried out by a licensed electrician or suitably qualified electrical service provider in accordance with AS/NZS 3000, applicable electricity distributor requirements and approved service connection procedures. Isolate the supply and follow the specified cable preparation and tightening requirements.
Applications
- Service mains connections at private poles
- Electrical riser connections
- Overhead conductor joining or tapping
- Low-voltage electrical distribution installations
- Utility and building service connection work
Standards & Compliance
- AS/NZS 3000:2018, as applicable to the associated electrical installation and service connection
Environmental Benefits
- Nickel-plated brass provides corrosion resistance and supports extended service life
- Brass components can be recovered and recycled at end of service
- Durable construction can reduce premature replacement and associated material waste
Warranty Information
No Bovara-specific warranty period was identified. Warranty support is subject to supplier terms, with applicable Australian Consumer Law rights preserved.
Available Now
Available through authorised Bovara distributors in Australia.
