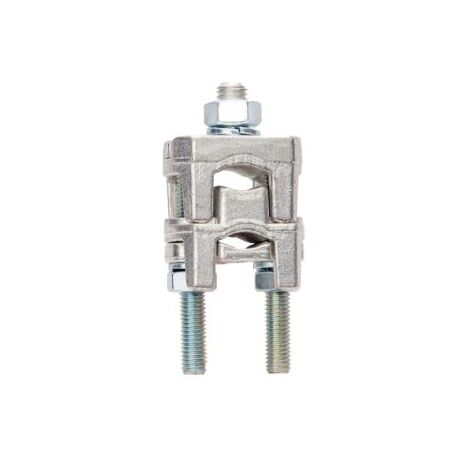

Riser Clamp Double 6-50mm² Split Bolt Nickel Brass Bovara

BRAND: Bovara Electrical Equipment
SKU: G50D
$48.10 List price: $64.20
+ −
30 Days Return Electricians Unlock Trade Access
Bovara double riser clamp features nickel plated brass split bolt construction for 6-50mm² cable. Ideal for service mains connections at private poles and risers.

Alternatively Known As: Double Riser Clamp, Double Split-Bolt Cable Clamp, Studded Bi-Metal Clamp, Service Mains Connector

Technical Specifications
  • Model: G50D
  • Cable Size Range: 6–50 mm²
  • Connection Type: Double connection
  • Connector Type: Split bolt
  • Material: Nickel-plated brass
  • Insulation: Uninsulated
  • Product Classification: Studded bi-metal riser clamp
  • Standard Pack Quantity: 1
  • Dimensions (H x L x W): 48mm x 18mm x 18mm
  • Weight: 0.15 kg
Key Features
  • Accommodates conductors from 6–50 mm²
  • Double connection configuration for joining or tapping conductors
  • Nickel-plated brass construction provides corrosion resistance
  • Split-bolt design supports secure mechanical and electrical contact
  • Compact format for service mains, private pole and riser installations
Professional Installation Requirements
  • Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and the relevant electricity distributor service and installation rules. Isolate and verify the circuit before working on conductors.
Applications
  • Service mains connections
  • Private electrical poles
  • Overhead-to-riser connections
  • Riser and tee-off assemblies
  • Low-voltage electrical distribution installations
Standards & Compliance
  • Use and installation in accordance with AS/NZS 3000:2018 Electrical installations — Wiring Rules and applicable electricity distributor service and installation rules
Environmental Benefits
  • Nickel-plated brass construction supports a long service life and may reduce replacement waste
  • Brass components are recyclable at end of service life
  • Corrosion-resistant plating helps maintain electrical and mechanical performance in suitable environments
Warranty Information

No Bovara-specific warranty policy was located. Warranty support should be confirmed with the supplier; Australian Consumer Law rights may apply.

Available Now

Available through authorised Bovara distributors in Australia.
