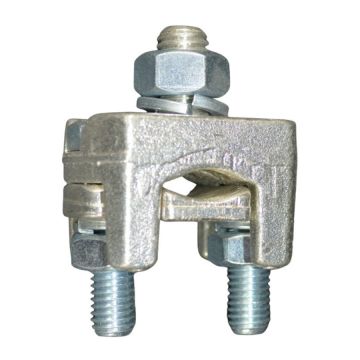

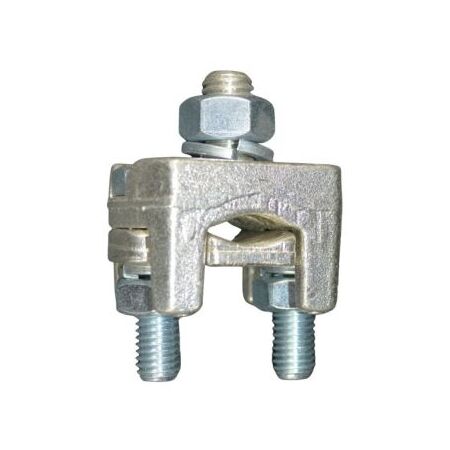

Riser Clamp Single 10-95mm² Split Bolt Nickel Brass Bovara

BRAND: Bovara Electrical Equipment
SKU: G95
$48.10 List price: $64.20
+ −
30 Days Return Electricians Unlock Trade Access
Bovara single riser clamp features nickel plated brass split bolt construction for 10-95mm² cable. Ideal for service mains connections at private poles and risers.

Alternatively Known As: Single Riser Clamp, Studded Bi-Metal Clamp, Split-Bolt Cable Clamp, Overhead Service Cable Clamp

Technical Specifications
  • Cable Size Range: 10–95 mm²
  • Clamp Type: Studded bi-metal riser clamp
  • Connection Type: Split-bolt connector
  • Material: Nickel-plated brass
  • Connection Arrangement: Single
  • Stud Size: 8 mm
  • Standard Pack Size: 1
  • Product Classification: UNSPSC 39121700
  • Dimensions (H x L x W): 52mm x 24mm x 34mm
  • Weight: 0.12 kg
Key Features
  • Nickel-plated brass construction for corrosion resistance
  • Split-bolt design for joining, tapping or connecting conductors
  • Suitable for 10–95 mm² cable sizes
  • Single-connection configuration
  • Designed for service mains, private poles and riser installations
  • Suitable for overhead low-voltage conductor connections
Professional Installation Requirements
  • Installation must be carried out by a licensed electrician or appropriately authorised service provider. De-energise and verify the circuit before work, and follow AS/NZS 3000, applicable electricity distributor service and installation rules, and the manufacturer's installation instructions.
Applications
  • Service mains connections at private poles
  • Electrical cable risers and point-of-attachment installations
  • Overhead low-voltage conductor joining or tapping
  • Residential, rural and light commercial electrical service installations
Standards & Compliance
  • AS/NZS 3000:2018 Wiring Rules, where applicable to the electrical installation
  • Applicable state or territory electricity distributor service and installation rules
Environmental Benefits
  • Nickel-plated brass provides durability and corrosion resistance, supporting extended service life
  • Brass components can be recovered and recycled at end of life
  • Longer component life can reduce replacement frequency and associated material waste
Warranty Information

Bovara's specific warranty terms for this product are not published; warranty coverage should be confirmed with the authorised distributor or Bovara before purchase.

Available Now

Available through authorised Bovara distributors in Australia.
