Riser Clamp Single 16-150mm² Split Bolt Nickel Brass Bovara

BRAND: Bovara Electrical Equipment
SKU: G150
$56.70 List price: $75.60
+ −
30 Days Return Electricians Unlock Trade Access

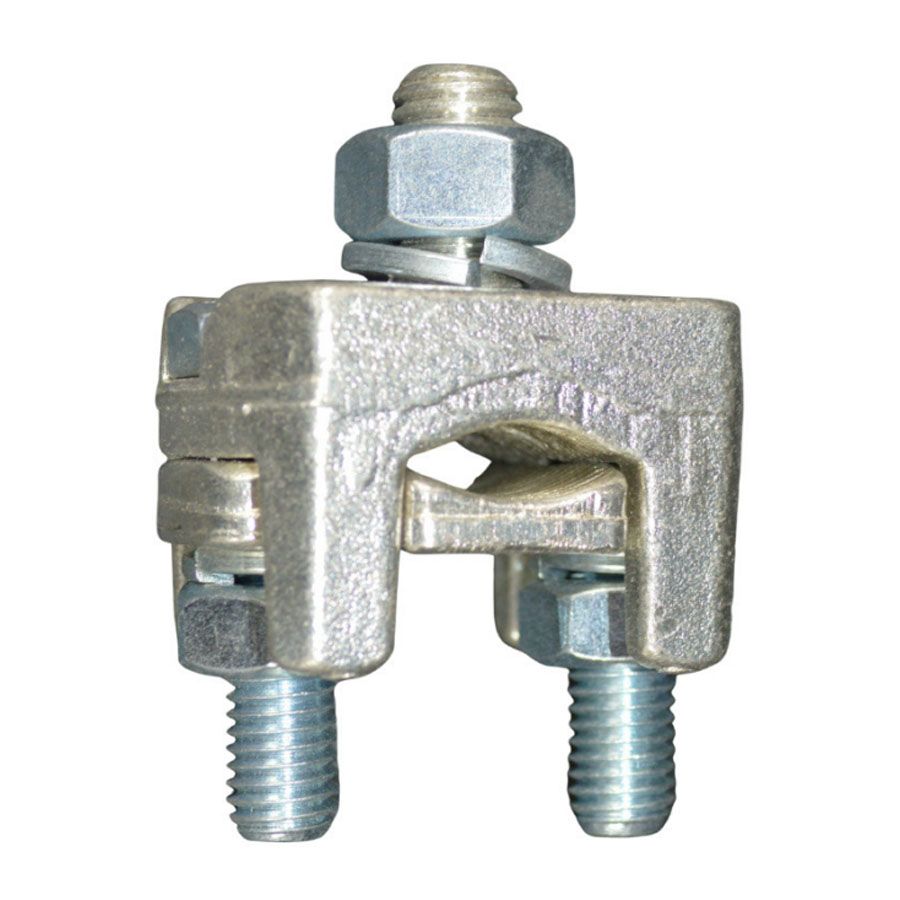

Bovara single riser clamp features nickel plated brass split bolt construction for 16-150mm² cable. Ideal for service mains connections at private poles and risers.

Alternatively Known As: Single Riser Clamp, Split-Bolt Riser Clamp, Overhead Conductor Clamp, Service Mains Clamp

Technical Specifications
  • Cable Size Range: 16–150 mm²
  • Connection Type: Single connection
  • Connector Type: Split bolt
  • Material: Nickel-plated brass
  • Standard Pack Quantity: 1
  • Product Reference: G150 / BOVG150
  • Application Voltage: Low-voltage electrical service connections
  • Dimensions (H x L x W): 58mm x 26mm x 20mm
  • Weight: 0.12 kg
Key Features
  • Suitable for 16–150 mm² cable conductors
  • Nickel-plated brass construction for corrosion resistance
  • Split-bolt connection design
  • Single-connection configuration
  • Designed for overhead conductor joining, tapping and service connections
  • Suitable for service mains connections at private poles and cable risers
Professional Installation Requirements
  • Installation should be completed by a licensed electrician or appropriately accredited service provider in accordance with AS/NZS 3000 and the relevant state, territory and electricity distributor service and installation rules.
Applications
  • Service mains connections at private poles
  • Electrical cable risers
  • Overhead conductor connections
  • Joining or tapping compatible low-voltage conductors
  • Residential, commercial and utility electrical installations
Standards & Compliance
  • For use within electrical installations designed and installed in accordance with AS/NZS 3000 Wiring Rules
  • Installation must also comply with applicable state or territory service and installation rules and electricity distributor requirements
Environmental Benefits
  • Brass is recyclable at the end of the product's service life
  • Nickel-plated metal construction can support extended service life and reduce replacement waste
  • Compact metal construction requires no electrical or electronic consumables during operation
Warranty Information

No specific Bovara manufacturer warranty period was located. Warranty is subject to Bovara or distributor terms and applicable Australian Consumer Law.

Available Now

Available through authorised Bovara distributors in Australia.
