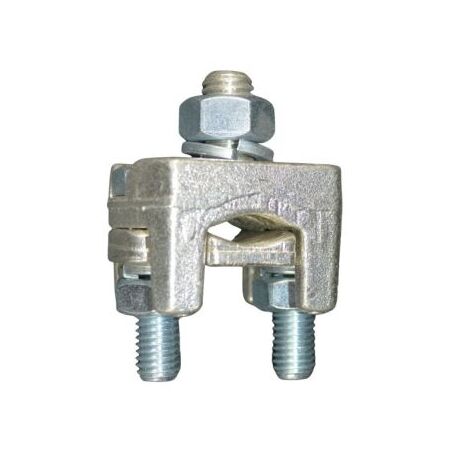

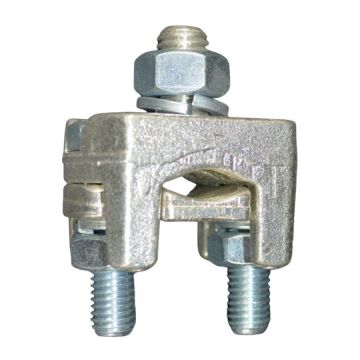

Riser Clamp Single 50-240mm² Split Bolt Nickel Brass Bovara

BRAND: Bovara Electrical Equipment
SKU: G240
$104.80 List price: $139.80
+ −
30 Days Return Electricians Unlock Trade Access
Bovara single riser clamp features nickel plated brass split bolt construction for 50-240mm² cable. Ideal for service mains connections at private poles and risers.

Alternatively Known As: Single Riser Clamp, Split-Bolt Riser Clamp, Service Mains Clamp, Nickel-Plated Brass Cable Connector

Technical Specifications
  • Product Code: G240
  • Cable Size Range: 50–240 mm²
  • Material: Nickel-plated brass
  • Connection Type: Single split-bolt connection
  • Pack Quantity: 1
  • Overall Height: 68 mm
  • Length: 35 mm
  • Product Classification: UNSPSC 39121700
  • Dimensions (H x L x W): 68mm x 35mm x 35mm
  • Weight: 0.25 kg
Key Features
  • Single riser clamp configuration
  • Nickel-plated brass split-bolt construction
  • Suitable for large copper conductors from 50–240 mm²
  • Designed for joining or tapping overhead conductors
  • Suitable for service mains connections at private poles and risers
  • Corrosion-resistant plated finish
Professional Installation Requirements
  • Installation must be performed by a licensed electrician or authorised electrical service provider in accordance with AS/NZS 3000, the manufacturer's instructions and the relevant electricity distributor's service and installation rules. Confirm conductor compatibility, tightening torque and network approval before use.
Applications
  • Service mains connections at private poles
  • Overhead consumer mains and riser assemblies
  • Joining or tapping large electrical conductors
  • Private pole and point-of-attachment installations
  • Residential, commercial and utility electrical work
Standards & Compliance
  • AS/NZS 4325.1:1995 for compression and mechanical connectors used with copper or aluminium power cables
  • AS/NZS 3000 for installation of the connector within low-voltage electrical installations
  • Applicable electricity distributor service and installation rules for overhead consumer mains and private poles
Environmental Benefits
  • Nickel-plated brass offers durability and corrosion resistance, helping extend service life and reduce replacement waste
  • Brass is recoverable through established non-ferrous metal recycling streams
  • Mechanical construction allows servicing or replacement of conductors without replacing the entire clamp assembly
Warranty Information

Bovara does not publish a product-specific warranty period for this riser clamp. Warranty claims are subject to Bovara's applicable terms and Australian Consumer Law protections.

Available Now

Available through authorised Bovara distributors in Australia.
