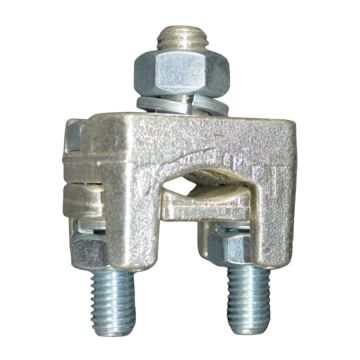

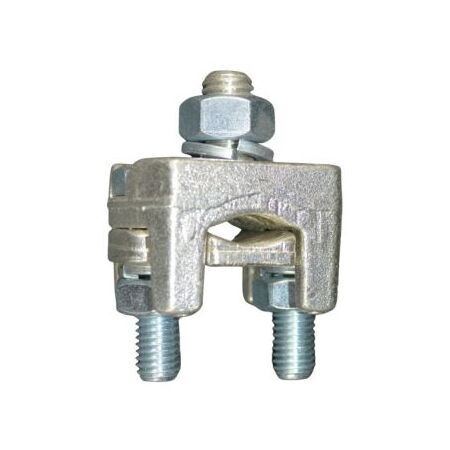

Riser Clamp Single 6-50mm² Split Bolt Nickel Brass Bovara

BRAND: Bovara Electrical Equipment
SKU: G50
$34.40 List price: $45.80
+ −
30 Days Return Electricians Unlock Trade Access
Bovara single riser clamp features nickel plated brass split bolt construction for 6-50mm² cable. Ideal for service mains connections at private poles and risers.

Alternatively Known As: Single Riser Clamp, Split Bolt Riser Clamp, Service Mains Clamp, Overhead Cable Tap Clamp

Technical Specifications
  • Model: G50D
  • Cable Size: 6–50 mm²
  • Connection Type: Single connection
  • Connector Type: Split bolt
  • Material: Nickel-plated brass
  • Pack Quantity: 1
  • Application Type: Service mains and overhead riser connections
  • Dimensions (H x L x W): 48mm x 18mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Nickel-plated brass construction provides corrosion resistance
  • Split bolt design for joining or tapping suitable conductors
  • Suitable for cable sizes from 6 to 50 mm²
  • Single connection configuration
  • Designed for service mains connections at private poles and risers
  • Compact metal construction for point-of-attachment arrangements
Professional Installation Requirements
  • Installation and connection must be carried out by a licensed electrician or suitably authorised electrical service provider in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable electricity distributor service rules.
Applications
  • Service mains connections at private poles
  • Overhead consumer mains and riser connections
  • Cable joining or tapping in electrical service arrangements
  • Residential and small commercial point-of-attachment installations
Standards & Compliance
  • AS/NZS 3000:2018 electrical installation requirements apply
  • Applicable electricity distributor service and installation rules for overhead consumer mains and private poles
Environmental Benefits
  • Nickel-plated brass is durable and suitable for recovery through non-ferrous metal recycling streams
  • Long service life can reduce replacement frequency and associated material waste
  • Compact metal construction uses a relatively small quantity of recyclable material
Warranty Information

Bovara-specific warranty period was not publicly identified. Warranty is subject to the supplier's terms and applicable Australian Consumer Law protections against defects.

Available Now

Available through authorised Bovara distributors in Australia.
