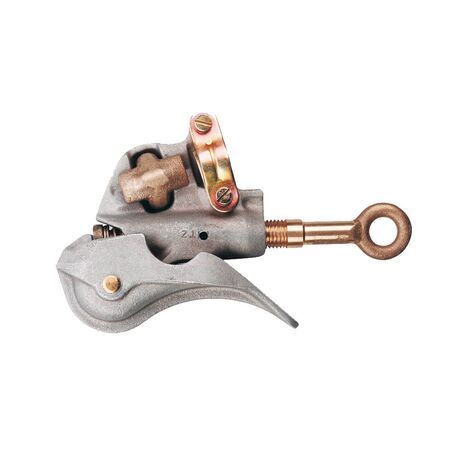

Ritz Snap On Duck Bill Clamp | 400A Continuous Rating | Fault Current 35kA | @EA of 1 | by Cabac
The Ritz Snap On Duck Bill Clamp is designed for secure conductor clamping in live line electrical work, featuring a continuous current rating of 400A and fault current withstand of 15 cycles at 35kA. Ideal for trained electrical professionals, this clamp is compatible with various conductor types and ensures safe operation during maintenance and repair tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Continuous current rating: 400A
- Fault current rating: 15 cycles at 35kA, 30 cycles at 25kA
- Main line conductor diameter: 4 to 29 mm
- Jumper cable conductor range: 25 to 95 mm²
- Recommended torque: 3 Nm
- Compatible with crimp stalk lugs (C600-2627/2628 series)
- ASTM designation: Type III, Class A, Grade 5
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 0.7 kg
Key Features
- Snap-on duck bill design for easy location and initial attachment
- Continuous current rating of 400A
- Fault current withstand: 15 cycles at 35kA, 30 cycles at 25kA
- Main line conductor diameter range: 4 to 29 mm
- Jumper cable conductor range: 25 to 95 mm²
- Recommended tightening torque: 3 Nm
- Compatible with crimp stalk lugs from C600-2627/2628 series
Professional Installation Requirements
- Should be installed and used by trained electrical professionals familiar with live line tools and safety protocols.
Applications
- Hot stick and shotgun stick applications
- Live line electrical work requiring secure conductor clamping
- Suitable for use with copper, AAC, and ACSR conductors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Enables safe live line work, reducing risk of electrical faults and environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Ritz Snap On Duck Bill Clamp is available for immediate purchase, ideal for electrical live line maintenance and repair applications.
