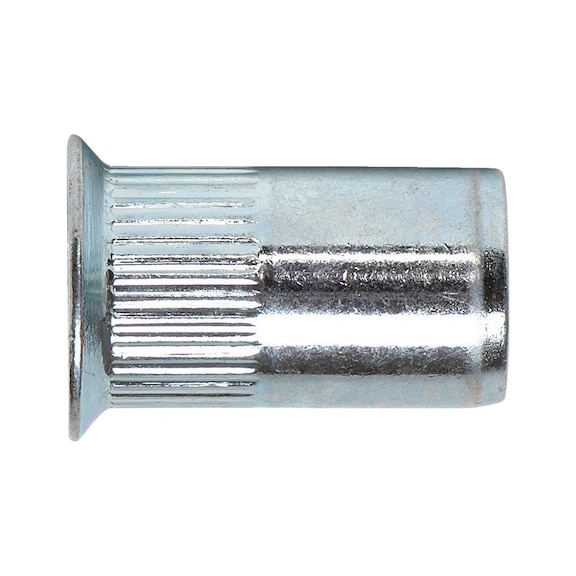

Rivet Nut with Countersunk Head & Knurled Shank | 10 PCS | Aluminium | RoHS Compliant | by Wurth
Rivet nut with countersunk head and knurled shank is perfect for fastening in thin-walled structural elements. Made from lightweight aluminium and RoHS-compliant, it ensures secure connections with a tensile fracture load of 2840 N. Ideal for mechanical assembly, this 10 PCS set is designed for professional installation, providing reliable performance in metal sheets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Countersunk Head & Knurled Shank | 10 PCS | Aluminium | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 9483204
Alternatively Known As: Blind Rivet Nut, Knurled Rivet Nut, Countersunk Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M4
- Length (l1): 12.5 mm
- Head diameter (d1): 8.5 mm
- Outer diameter (d2): 5.9 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-4.0 mm
- Tensile fracture load: 2840 N
- Shear-fracture load: 1070 N
- Max. tightening torque: 4 Nm
- Drill hole diameter: 6.0 mm
- Shank detail: With knurled shank
- Head type: Countersunk head
- Dimensions (H x L x W): 12.5mm x 12.5mm x 8.5mm
- Weight: 0.01 kg
Key Features
- Combines blind rivet connection and additional screw connection
- Enables screw connections in thin-walled structural elements
- Knurled shank for secure fastening
- Countersunk head design
Professional Installation Requirements
- Installation requires appropriate tools for blind rivet nuts and should be performed by a qualified technician to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet connections combined with screw connections
- Ideal for mechanical assembly requiring strong screw fastening in metal sheets
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Aluminium construction is lightweight and recyclable
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Countersunk Head and Knurled Shank 10 PCS is available for immediate purchase, ideal for mechanical fastening in thin-walled metal structures.
