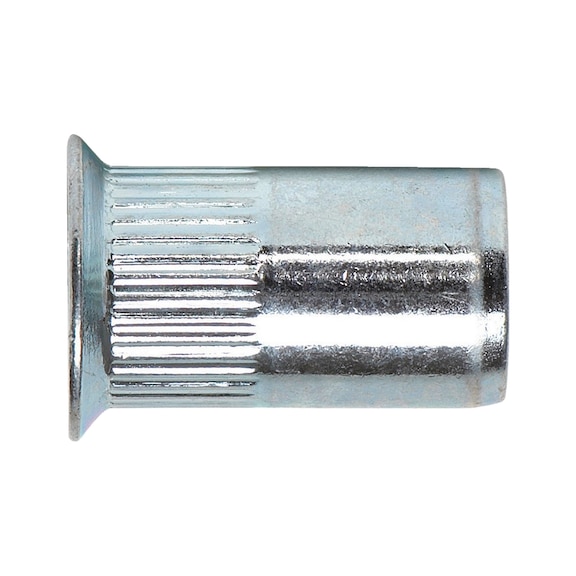

Rivet Nut with Countersunk Head & Knurled Shank | Aluminium | 10 PCS | by Wurth
Rivet nut with countersunk head and knurled shank is perfect for fastening in thin-walled structural elements. Made from lightweight aluminium, it combines blind rivet and screw connections for secure fastening. Ideal for mechanical assembly and repair work, this 10 PCS set ensures strong screw joints and is RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Countersunk Head & Knurled Shank | Aluminium | 10 PCS | by Wurth
Brand: Wurth
SKU: 9483205
Alternatively Known As: Blind Rivet Nut, Knurled Rivet Nut, Countersunk Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M5
- Length (l1): 13.5 mm
- Head diameter (d1): 9.5 mm
- Outer diameter (d2): 6.9 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-4.0 mm
- Tensile fracture load: 4900 N
- Shear-fracture load: 1170 N
- Max. tightening torque: 5 Nm
- Drill hole diameter: 7.0 mm
- Shank detail: With knurled shank
- Head type: Countersunk head
- Dimensions (H x L x W): 13.5mm x 13.5mm x 9.5mm
- Weight: 0.02 kg
Key Features
- Combines blind rivet connection and additional screw connection
- Enables screw connections in thin-walled structural elements
- Knurled shank for secure fastening
- Countersunk head design
Professional Installation Requirements
- Installation requires appropriate tools and should be performed by a trained professional to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Ideal for blind rivet connections combined with screw connections
- Suitable for mechanical assembly and repair work requiring strong screw joints
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Aluminium construction is lightweight and recyclable
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Countersunk Head and Knurled Shank 10 PCS is available for immediate purchase, ideal for mechanical fastening in thin-walled structural applications.
