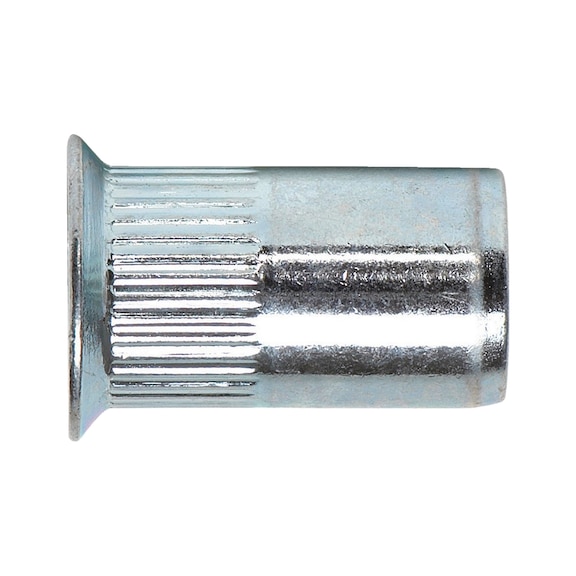

Rivet Nut with Countersunk Head & Knurled Shank | Aluminium | 10 PCS | by Wurth
Rivet nut with countersunk head and knurled shank is perfect for fastening in thin-walled structural elements. Made from lightweight aluminium, it combines blind rivet and screw connections for enhanced strength. Ideal for mechanical assembly in metal sheets, this 10 PCS set ensures secure fastening with a tensile fracture load of 9300 N.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Countersunk Head & Knurled Shank | Aluminium | 10 PCS | by Wurth
Brand: Wurth
SKU: 9483206
Alternatively Known As: Blind Rivet Nut, Rivnut, Nutsert, Threaded Insert, Countersunk Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M6
- Length (l1): 15.5 mm
- Head diameter (d1): 11.5 mm
- Outer diameter (d2): 8.9 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-4.0 mm
- Tensile fracture load: 9300 N
- Shear-fracture load: 2280 N
- Max. tightening torque: 11.3 Nm
- Drill hole diameter: 9.0 mm
- Shank detail: With knurled shank
- Head type: Countersunk head
- Dimensions (H x L x W): 15.5mm x 15.5mm x 11.5mm
- Weight: 0.02 kg
Key Features
- Combines blind rivet connection and additional screw connection
- Enables screw connections in relatively thin-walled structural elements
- Knurled shank for secure fastening
- Countersunk head design
Professional Installation Requirements
- Installation requires proper drilling and setting tools; professional installation recommended for optimal fastening performance and safety.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet connections combined with screw connections
- Ideal for mechanical assembly requiring strong screw fastening in metal sheets
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Aluminium construction is lightweight and recyclable
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Countersunk Head and Knurled Shank 10 PCS is available for immediate purchase, ideal for mechanical fastening in thin-walled metal structures.
