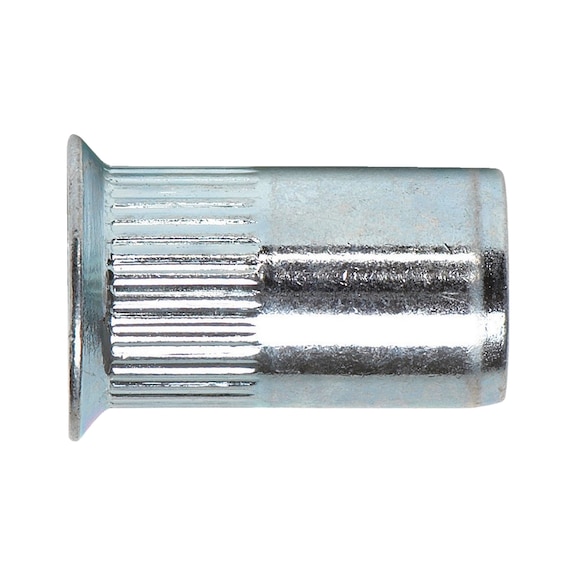

Rivet Nut with Countersunk Head & Knurled Shank | 10 PCS | Aluminium Material | RoHS Compliant | by Wurth
Rivet nut with countersunk head and knurled shank is perfect for fastening in thin-walled structural elements. Designed for secure fastening, it combines the benefits of blind rivet and screw connections, making it ideal for mechanical assembly. With a RoHS-compliant aluminium construction, this product supports recyclability and ensures safety in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Countersunk Head & Knurled Shank | 10 PCS | Aluminium Material | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 9483208
Alternatively Known As: Blind Rivet Nut, Rivnut, Threaded Insert Nut, Knurled Rivet Nut, Countersunk Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M8
- Length (l1): 18.5 mm
- Head diameter (d1): 13.5 mm
- Outer diameter (d2): 10.9 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-4.0 mm
- Tensile fracture load: 14700 N
- Shear-fracture load: 2400 N
- Max. tightening torque: 14.6 Nm
- Drill hole diameter: 11.0 mm
- Shank detail: With knurled shank
- Head type: Countersunk head
- Dimensions (H x L x W): 18.5mm x 18.5mm x 13.5mm
- Weight: 0.02 kg
Key Features
- Knurled shank for secure fastening
- Combines blind rivet and screw connection
- Enables screw connections in thin-walled materials
- Countersunk head design
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet connections combined with screw connections
- Ideal for mechanical assembly requiring strong screw fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Aluminium construction supports recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Countersunk Head and Knurled Shank 10 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
