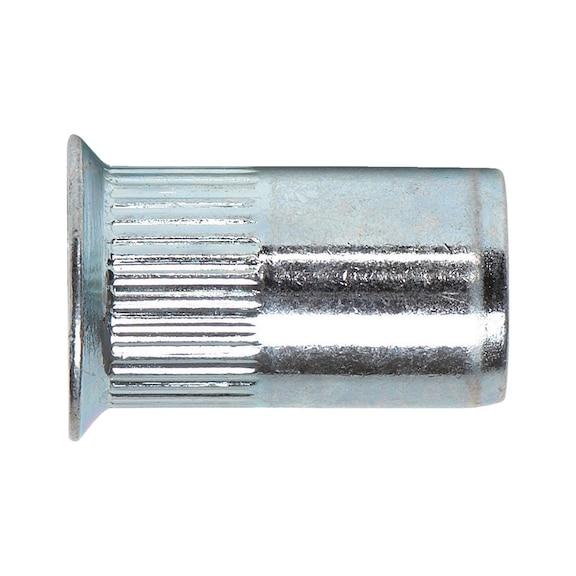

Rivet Nut with Countersunk Head & Knurled Shank | M10 | 10 PCS | by Wurth
Rivet nut with countersunk head and knurled shank is perfect for fastening in thin-walled structural elements. Made from RoHS-compliant aluminium, it combines blind rivet and screw connections for secure fastening. Ideal for mechanical assembly and repair work, this product ensures strong connections and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Countersunk Head & Knurled Shank | M10 | 10 PCS | by Wurth
Brand: Wurth
SKU: 94832010
Alternatively Known As: Rivet Nut M10, Countersunk Rivet Nut, Knurled Shank Rivet Nut, Blind Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M10
- Length (l1): 21 mm
- Head diameter (d1): 14.5 mm
- Outer diameter (d2): 11.9 mm
- Head height (k1): 1.7 mm
- Min./max. grip range (s1): 2.0-4.5 mm
- Tensile fracture load: 21500 N
- Shear-fracture load: 3820 N
- Max. tightening torque: 20 Nm
- Drill hole diameter: 12.0 mm
- Shank detail: With knurled shank
- Head type: Countersunk head
- Dimensions (H x L x W): 21mm x 21mm x 14.5mm
- Weight: 0.05 kg
Key Features
- Combines blind rivet connection and additional screw connection
- Knurled shank for secure fastening
- Countersunk head design
- Enables screw connections in thin-walled materials
- RoHS-compliant aluminium material
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure correct torque and secure fastening according to specifications.
Applications
- Used for fastening in thin-walled structural elements
- Ideal for blind rivet connections combined with screw connections
- Suitable for mechanical assembly and repair work requiring strong screw connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable aluminium construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Countersunk Head and Knurled Shank M10 is available for immediate purchase, ideal for industrial and mechanical fastening applications.
