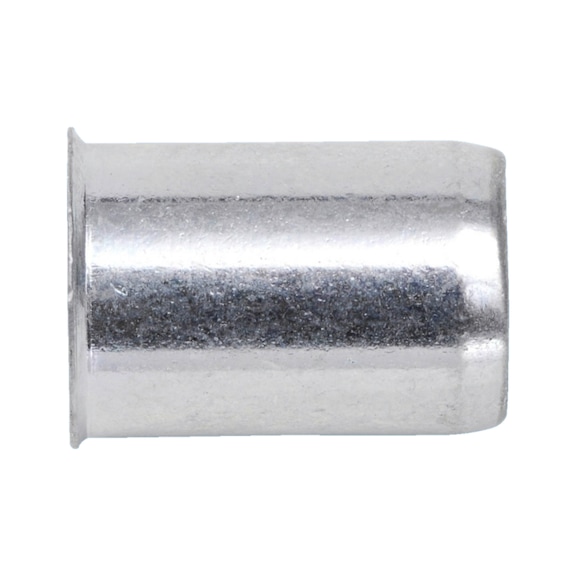

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Rivet nut with small countersunk head made from durable zinc-plated steel, ideal for secure threaded connections in automotive, construction, and industrial applications. This pack of 10 features a unique design for installation from one side, ensuring high installation quality without the need for countersinking drill holes. Perfect for metal fabrication and closed profiles, it enhances efficiency and reduces material waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 91722014
Alternatively Known As: Rivet Nut, Rivnut, Blind Nut, Threaded Insert, Countersunk Rivet Nut
Technical Specifications
- Thread type x nominal diameter (D): UNC1/4
- Head diameter (d1): 0.320 in (8.13 mm)
- Outer diameter (d2): 0.374 in (9.5 mm)
- Length (l1): 0.575 in (14.6 mm)
- Head height (k1): 0.020 in (0.5 mm)
- Min./max. grip range (s1): 0.04-0.15 in (1.0-3.8 mm)
- Material: Steel
- Surface: Zinc plated, blue passivated
- Max. tightening torque: 110 lbf.ft (149 Nm)
- Drill hole diameter: 0.378 in (9.6 mm)
- Head type: Countersunk head
- Dimensions (H x L x W): 0.5mm x 14.6mm x 9.5mm
- Weight: 0.02 kg
Key Features
- Can be used as riveted and screwed connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Professional installation recommended to ensure correct torque and secure fitting, especially in structural applications.
Applications
- Suitable for riveted and screwed connections in metal fabrication
- Installation in closed profiles from one side
- Mounting additional components using conventional screws
- Use in automotive, construction, and industrial assembly
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc-plated steel construction extends product life and reduces waste
- Enables secure and efficient assembly reducing need for rework and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase. Ideal for industrial, automotive, and construction applications requiring secure threaded connections.
