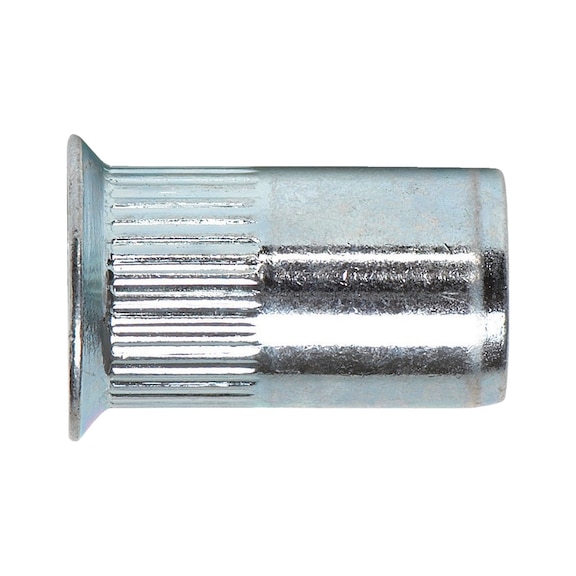

Rivet Nut with Countersunk Head | Zinc-Plated Steel | Knurled Shank | M10 | by Wurth
Rivet nut with countersunk head designed for secure fastening in thin-walled structural elements. Made from zinc-plated steel, it features a knurled shank for enhanced torque resistance, making it ideal for applications in automotive, construction, and manufacturing industries. This versatile nut is suitable for fastening aluminium, plastic, and fibreglass materials, ensuring durability and compliance with environmental standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Countersunk Head | Zinc-Plated Steel | Knurled Shank | M10 | by Wurth
Brand: Wurth
SKU: 948320010
Alternatively Known As: Blind Rivet Nut, Rivnut, Threaded Insert Nut, Knurled Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M10
- Length (l1): 21 mm
- Head diameter (d1): 14.5 mm
- Outer diameter (d2): 11.9 mm
- Head height (k1): 1.7 mm
- Min./max. grip range (s1): 2.0-4.5 mm
- Tensile fracture load: 34300 N
- Shear-fracture load: 5050 N
- Max. tightening torque: 20 Nm
- Drill hole diameter: 12.0 mm
- Shank detail: With knurled shank
- Head type: Countersunk head
- Dimensions (H x L x W): 21mm x 21mm x 14.5mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation
- Chrome (VI)-free, compliant with EU End of Life Vehicles Directive
- Combines blind rivet and screw connection for secure fastening
- Knurled shaft increases tightening torque and resistance to turning
- Suitable for fastening all materials, especially aluminium, plastic, and fibreglass
Professional Installation Requirements
- Installation should be performed by a qualified technician using appropriate tools to ensure correct setting and torque application.
Applications
- Fastening in thin-walled structural elements
- Suitable for aluminium, plastic, and fibreglass materials
- Used in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Chrome (VI)-free surface treatment reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting recyclability
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Rivet Nut with Countersunk Head and Knurled Shank is available for immediate purchase, ideal for structural fastening applications in automotive, construction, and manufacturing sectors.
