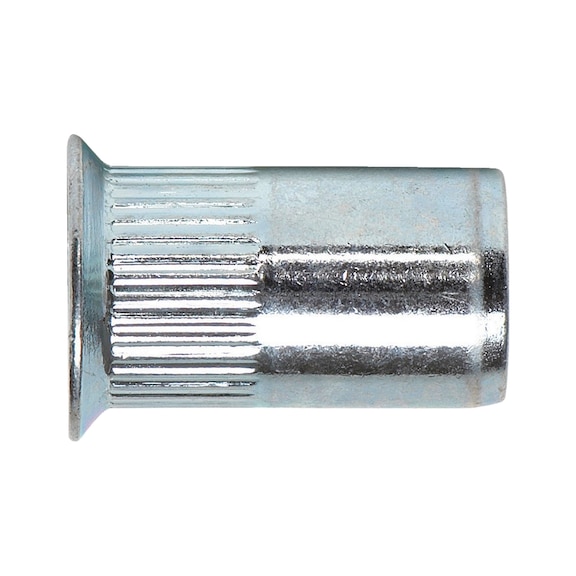

Rivet Nut with Countersunk Head | Zinc-Plated Steel | Knurled Shank | M8 | by Wurth
Rivet nut with countersunk head designed for secure fastening in various materials, including aluminum, plastic, and fiberglass. Made from zinc-plated steel, it features a knurled shank for enhanced torque resistance. Ideal for automotive, construction, and manufacturing applications, this nut ensures reliable performance and compliance with environmental standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Countersunk Head | Zinc-Plated Steel | Knurled Shank | M8 | by Wurth
Brand: Wurth
SKU: 94832008
Alternatively Known As: Blind Rivet Nut, Rivnut, Threaded Insert Nut, Knurled Rivet Nut, Countersunk Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M8
- Length (l1): 18.5 mm
- Head diameter (d1): 13.5 mm
- Outer diameter (d2): 10.9 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-4.0 mm
- Tensile fracture load: 30840 N
- Shear-fracture load: 4720 N
- Max. tightening torque: 20 Nm
- Drill hole diameter: 11.0 mm
- Shank detail: With knurled shank
- Head type: Countersunk head
- Dimensions (H x L x W): 18.5mm x 18.5mm x 13.5mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation
- Chrome (VI)-free, compliant with EU End of Life Vehicles Directive
- Combines blind rivet and screw connection for secure fastening
- Knurled shank increases tightening torque and resistance to turning
- Suitable for fastening all materials, especially aluminium, plastic, and fibreglass
Professional Installation Requirements
- Installation requires appropriate tools and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Fastening thin-walled structural elements
- Suitable for aluminium, plastic, and fibreglass materials
- Used in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome (VI)-free surface treatment reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting recyclability and reduced toxic substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with Countersunk Head and Knurled Shank is available for immediate purchase, ideal for industrial and construction fastening applications.
