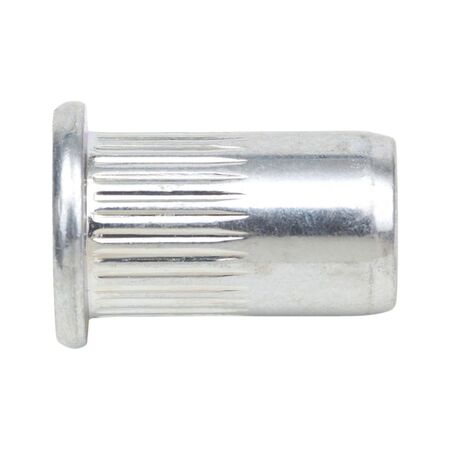

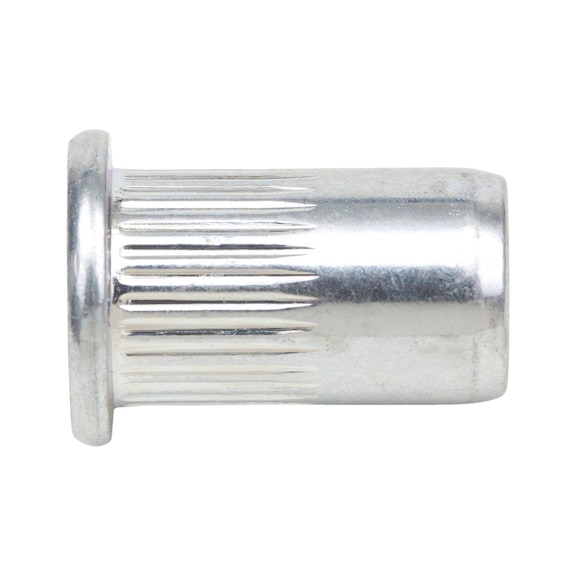

Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | @Each by Wurth
Rivet nut with flat head and knurled shank, crafted from A2 stainless steel for superior corrosion resistance. This dome head design ensures secure fastening, making it ideal for mechanical fastening in thin materials, automotive assembly, and sheet metal fabrication. With an increased anti-rotation lock due to the knurled shank, it's perfect for professionals seeking reliability in their installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | @Each by Wurth
Brand: Wurth
SKU: 94210010
Alternatively Known As: Knurled Rivet Nut, Dome Head Rivet Nut, Stainless Steel Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Stainless steel A2
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M10
- Length (l1): 19 mm
- Head diameter (d1): 16.0 mm
- Outer diameter (d2): 12.9 mm
- Head height (k1): 2.1 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 35280 N
- Shear-fracture load: 8800 N
- Max. tightening torque: 39 Nm
- Drill hole diameter: 13.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 2.1mm x 19mm x 16mm
- Weight: 0.05 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Increased anti-rotation lock due to knurled shank
- Dome head design for secure fastening
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Mechanical fastening in thin materials
- Automotive assembly
- Sheet metal fabrication
- Electrical enclosures
- Furniture assembly
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank is available now for immediate purchase. Ideal for mechanical and industrial fastening applications.
