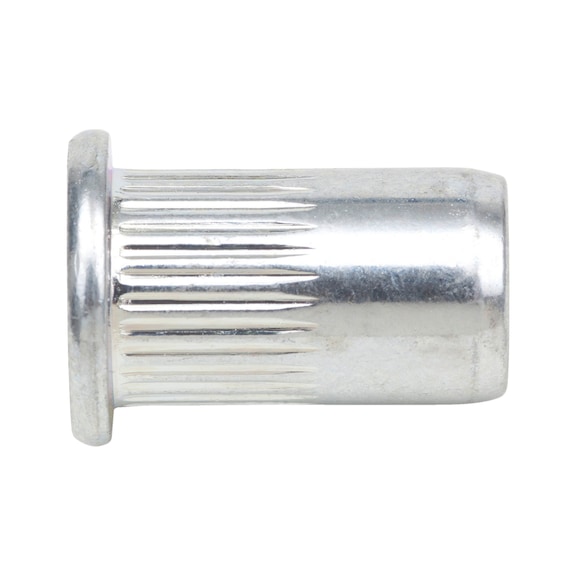

Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | by Wurth
Rivet nut with flat head and knurled shank, crafted from A2 stainless steel for superior corrosion resistance. This nut features a dome head design for flush fastening and an anti-rotation lock due to its knurled shank, making it ideal for automotive, construction, and industrial applications. Perfect for creating strong, threaded connections in thin materials, ensuring durability and reliability in metal fabrication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | by Wurth
Brand: Wurth
SKU: 9421005
Alternatively Known As: Threaded insert nut, Rivnut, Blind rivet nut, Nutsert
Technical Specifications
- Material: Stainless steel A2
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M5
- Length (l1): 13 mm
- Head diameter (d1): 10.0 mm
- Outer diameter (d2): 6.9 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 11760 N
- Shear-fracture load: 3920 N
- Max. tightening torque: 12 Nm
- Drill hole diameter: 7.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 13mm x 13mm x 10mm
- Weight: 0.01 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Increased anti-rotation lock due to knurled shank
- Dome head design for flush and secure fastening
Professional Installation Requirements
- Installation requires appropriate tools and trained personnel to ensure correct torque and secure fastening.
Applications
- Used in metal fabrication and assembly for creating strong, threaded connections in thin materials
- Ideal for automotive, construction, and industrial applications requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank is available now for immediate purchase. Ideal for industrial and construction fastening applications.
