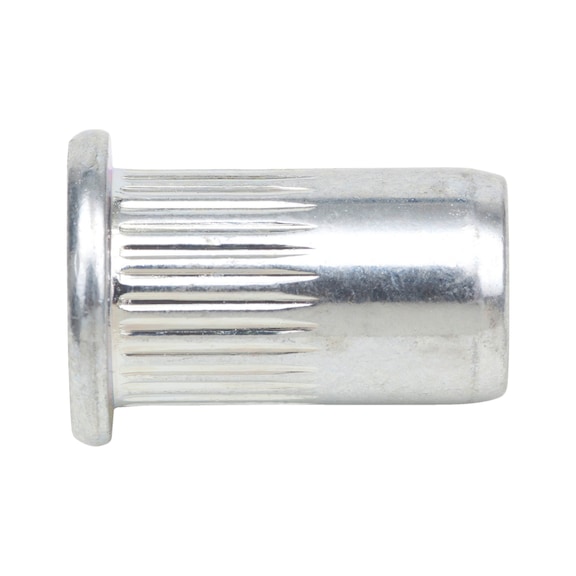

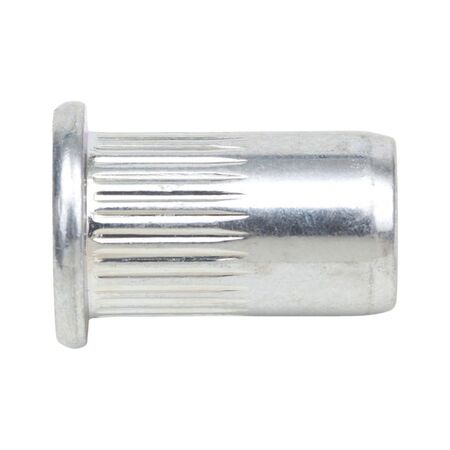

Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | Increased Anti-Rotation | by Wurth
Rivet nut with flat head and knurled shank, made from A2 stainless steel for superior corrosion resistance. This dome head design ensures secure fastening, making it ideal for mechanical fastening in thin materials and sheet metal assembly. Perfect for automotive and machinery repairs, it offers increased anti-rotation lock for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | Increased Anti-Rotation | by Wurth
Brand: Wurth
SKU: 9421006
Alternatively Known As: Knurled Shank Rivet Nut, Dome Head Rivet Nut, Stainless Steel Rivet Nut
Technical Specifications
- Material: Stainless steel A2
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M6
- Length (l1): 16 mm
- Head diameter (d1): 12.0 mm
- Outer diameter (d2): 8.9 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 20580 N
- Shear-fracture load: 5630 N
- Max. tightening torque: 22.2 Nm
- Drill hole diameter: 9.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 16mm x 16mm x 12mm
- Weight: 0.02 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Increased anti-rotation lock due to knurled shank
- Dome head design for secure fastening
Professional Installation Requirements
- Installation requires appropriate tools and should be performed by trained personnel to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in thin materials
- Sheet metal assembly
- Automotive and machinery repairs
- Industrial manufacturing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank is available now for immediate purchase. Ideal for industrial and mechanical fastening applications.
