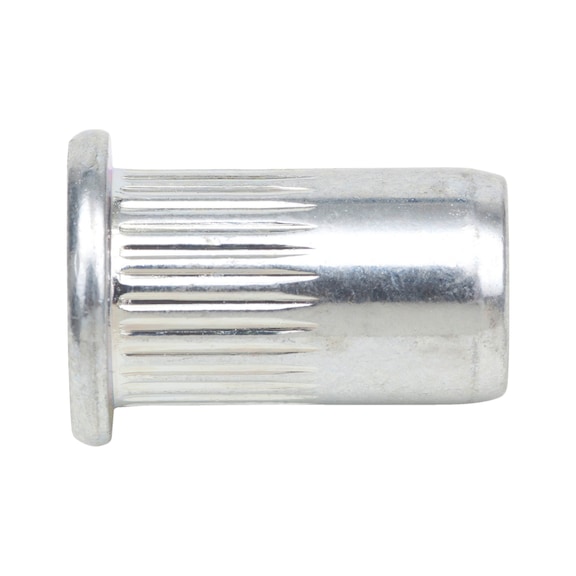

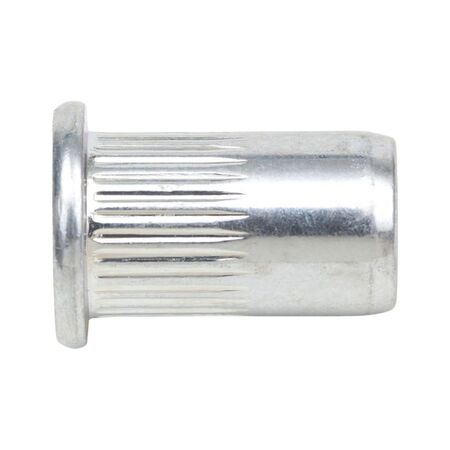

Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | @Each by Wurth
Rivet nut with flat head and knurled shank made from A2 stainless steel, ensuring corrosion resistance and durability. Ideal for mechanical fastening in metal sheets, automotive assembly, and electrical enclosures, this nut features a dome head design for secure fastening and increased anti-rotation lock due to its knurled shank. Perfect for industrial applications requiring strong, vibration-resistant fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Dome Head Design | @Each by Wurth
Brand: Wurth
SKU: 9422005
Alternatively Known As: Knurled Rivet Nut, Dome Head Rivet Nut, Stainless Steel Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Stainless steel A2
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M5
- Length (l1): 16 mm
- Head diameter (d1): 10.0 mm
- Outer diameter (d2): 6.9 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 3.0-5.5 mm
- Tensile fracture load: 11760 N
- Shear-fracture load: 3920 N
- Max. tightening torque: 12 Nm
- Drill hole diameter: 7.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 16mm x 16mm x 10mm
- Weight: 0.01 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Increased anti-rotation lock due to knurled shank
- Dome head design for secure fastening
Professional Installation Requirements
- Installation requires appropriate tools and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Mechanical fastening in metal sheets
- Automotive assembly
- Electrical enclosures
- Furniture manufacturing
- General industrial applications requiring strong, vibration-resistant fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank is available for immediate purchase, ideal for industrial and mechanical fastening applications.
