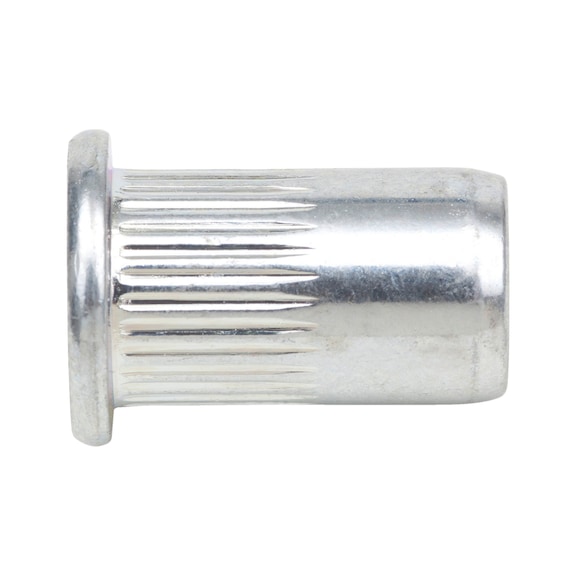

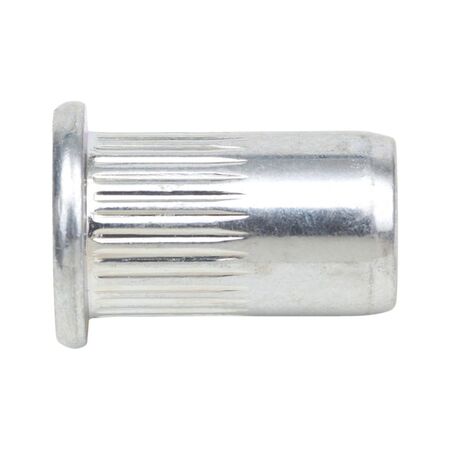

Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | High Tensile Strength | Dome Head Design | by Wurth
Rivet nut with flat head and knurled shank made from A2 stainless steel, offering exceptional corrosion resistance and a high tensile fracture load of 26460 N. Perfect for mechanical fastening in metal sheets, automotive assembly, and electrical enclosures, this durable insert ensures a secure fit and vibration resistance, making it ideal for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | High Tensile Strength | Dome Head Design | by Wurth
Brand: Wurth
SKU: 9422008
Alternatively Known As: Rivet Nut Insert, Threaded Insert Nut, Blind Rivet Nut, Knurled Rivet Nut
Technical Specifications
- Material: Stainless steel A2
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M8
- Length (l1): 20 mm
- Head diameter (d1): 15.0 mm
- Outer diameter (d2): 10.9 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 3.0-5.5 mm
- Tensile fracture load: 26460 N
- Shear-fracture load: 7800 N
- Max. tightening torque: 30.5 Nm
- Drill hole diameter: 11.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 1.6mm x 20mm x 15mm
- Weight: 0.02 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Increased anti-rotation lock due to knurled shank
- Dome head design for flush finish
- High tensile fracture load of 26460 N
- High shear-fracture load of 7800 N
Professional Installation Requirements
- Installation requires appropriate tools and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Mechanical fastening in metal sheets
- Automotive assembly
- Electrical enclosures
- Furniture manufacturing
- General industrial use requiring strong, vibration-resistant fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank is available now for immediate purchase. Ideal for industrial and mechanical fastening applications requiring strong, corrosion-resistant inserts.
