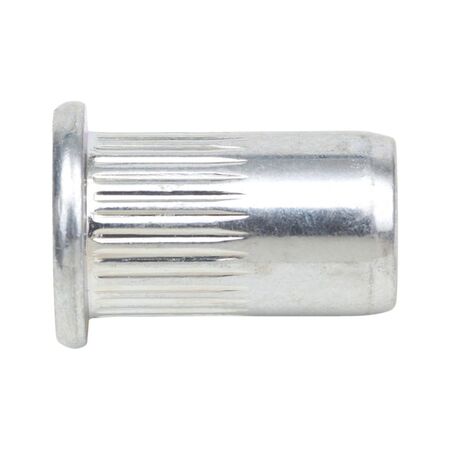

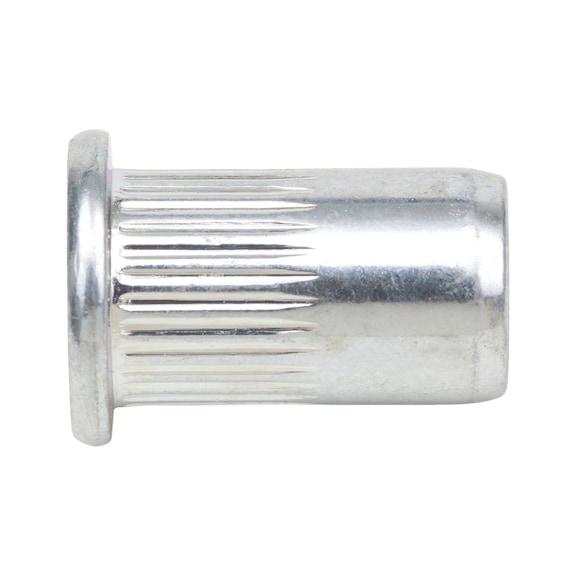

Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Anti-Rotation Lock | by Wurth
Rivet nut with flat head and knurled shank, made from A2 stainless steel for superior corrosion resistance. This nut is designed for mechanical fastening in metal sheets and automotive assembly, providing an increased anti-rotation lock for secure fastening. Ideal for industrial machinery and construction applications, it ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | A2 Stainless Steel | Anti-Rotation Lock | by Wurth
Brand: Wurth
SKU: 94220010
Alternatively Known As: Rivet Nut, Rivnut, Nutsert, Threaded Insert
Technical Specifications
- Material: Stainless steel A2
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M10
- Length (l1): 24 mm
- Head diameter (d1): 16 mm
- Outer diameter (d2): 12.9 mm
- Head height (k1): 2.1 mm
- Min./max. grip range (s1): 3-6.0 mm
- Tensile fracture load: 35280 N
- Shear-fracture load: 8800 N
- Max. tightening torque: 39 Nm
- Drill hole diameter: 13 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 2.1mm x 24mm x 16mm
- Weight: 0.05 kg
Key Features
- Made from A2 stainless steel for corrosion resistance
- Increased anti-rotation lock due to knurled shank
Professional Installation Requirements
- Installation requires appropriate tools and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Mechanical fastening in metal sheets
- Automotive assembly
- Industrial machinery
- Construction and fabrication
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing replacement frequency.
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Rivet Nut with flat head and knurled shank is available for immediate purchase, ideal for mechanical and industrial fastening applications.
