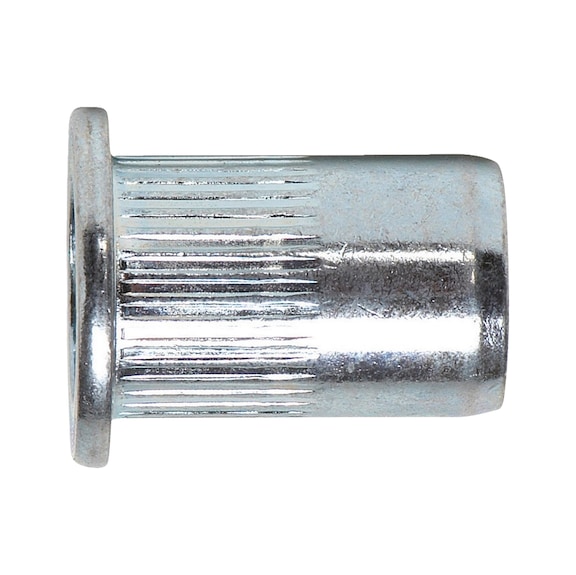

Rivet Nut with Flat Head & Knurled Shank | Aluminium | M3 | 10 Pack | by Wurth
Rivet nut with flat head and knurled shank, made from lightweight aluminium, is perfect for fastening in thin-walled structural elements. With a secure grip and a dome head design, it combines blind rivet and screw connection methods, making it ideal for mechanical assembly and repair work. This 10-pack ensures you have enough for your projects while being RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | Aluminium | M3 | 10 Pack | by Wurth
Brand: Wurth
SKU: 9482003
Alternatively Known As: Blind rivet nut, Rivnut, Nutsert, Threaded insert, Rivet insert nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M3
- Length (l1): 10.5 mm
- Head diameter (d1): 7.0 mm
- Outer diameter (d2): 4.9 mm
- Head height (k1): 0.9 mm
- Min./max. grip range (s1): 0.5-2.5 mm
- Tensile fracture load: 2000 N
- Shear-fracture load: 700 N
- Max. tightening torque: 2 Nm
- Drill hole diameter: 5.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 10.5mm x 10.5mm x 7mm
- Weight: 0.005 kg
Key Features
- Made of aluminium for lightweight and corrosion resistance
- Knurled shank for secure grip in the material
- Combines blind rivet and screw connection fastening methods
- Enables screw connections in thin-walled structural elements
- Dome head design
Professional Installation Requirements
- Installation requires proper drilling and setting tools; professional installation recommended for structural applications to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet connections combined with screw connections
- Ideal for mechanical assembly and repair work requiring strong screw joints
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from recyclable aluminium material
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M3 Aluminium is available for immediate purchase. Ideal for mechanical fastening in thin-walled structural elements.
