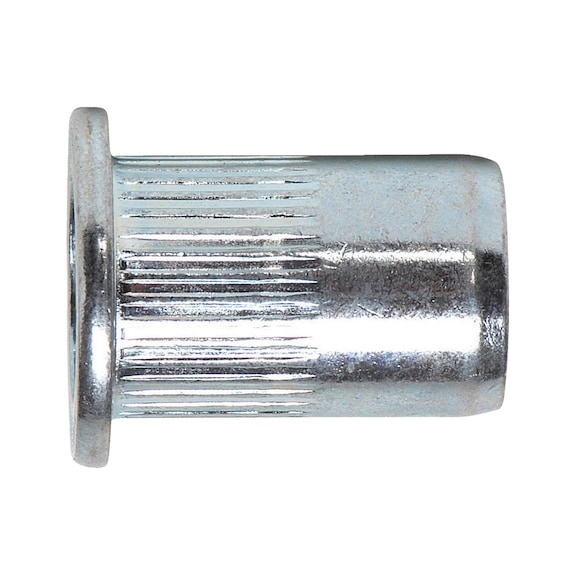

Rivet Nut with Flat Head & Knurled Shank | Aluminium | M4 | @Pack of 10 | by Wurth
Rivet nut with flat head and knurled shank, made from lightweight aluminium, is perfect for fastening in thin-walled materials. Designed for secure connections, it combines the benefits of blind rivets and screws, making it ideal for mechanical assembly and repair work. With a tensile fracture load of 2840 N, this product ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | Aluminium | M4 | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 9482004
Alternatively Known As: Blind rivet nut, Rivnut, Nutsert, Threaded insert, Rivet insert nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M4
- Length (l1): 11 mm
- Head diameter (d1): 9.0 mm
- Outer diameter (d2): 5.9 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 2840 N
- Shear-fracture load: 1070 N
- Max. tightening torque: 4 Nm
- Drill hole diameter: 6.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 11mm x 11mm x 9mm
- Weight: 0.01 kg
Key Features
- Made of aluminium for lightweight and corrosion resistance
- Knurled shank for secure fastening
- Combines blind rivet and screw connection types
- Enables screw connections in thin-walled materials
- Guideline values for maximum tractive force and tightening torque
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet and screw connections
- Ideal for mechanical assembly and repair work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from recyclable aluminium material
- RoHS-compliant, free from hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy.
Available Now
Wurth Rivet Nut with flat head and knurled shank M4 aluminium is available for immediate purchase, ideal for industrial and mechanical fastening applications.
