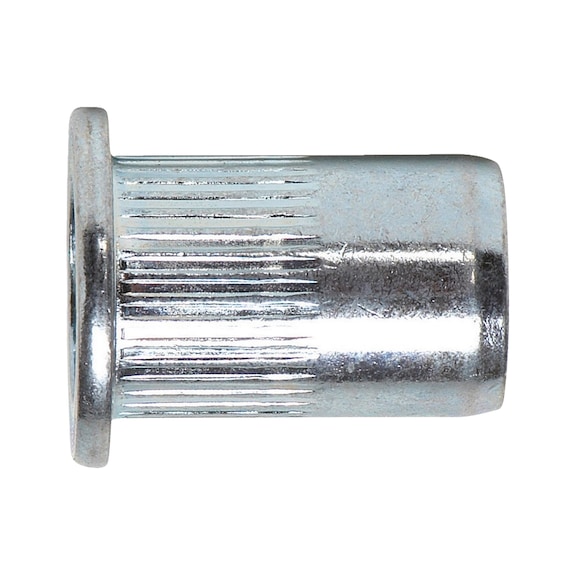

Rivet Nut with Flat Head & Knurled Shank Aluminium Material M8 Thread Variant-1-b Wurth

BRAND: Wurth
SKU: 9482208
$26.90 List price: $33.80
10 PCS ($2.69 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Rivet nut with flat head and knurled shank is designed for secure fastening in thin-walled materials.
Technical Specifications
  • Material: Aluminium
  • Surface: Plain
  • RoHS-compliant: Yes
  • Thread type x nominal diameter: M8
  • Length: 20 mm
  • Head diameter: 15 mm
  • Outer diameter: 10.9 mm
  • Head height: 1.6 mm
  • Grip range: 3.0-5.5 mm
  • Tensile fracture load: 14700 N
  • Shear-fracture load: 2450 N
  • Max tightening torque: 14.6 Nm
  • Drill hole diameter: 11.0 mm
  • Shank detail: Knurled shank
  • Head type: Dome head
  • Dimensions (H x L x W): 20mm x 20mm x 15mm
  • Weight: 0.01 kg
Key Features
  • Made of aluminium with a plain surface
  • Knurled shank for secure fastening
  • Combines blind rivet and screw connection types
  • Enables screw connections in thin-walled materials
  • Dome head type for flush finish
Professional Installation Requirements
  • Installation should be performed by trained personnel using appropriate tools to ensure correct setting and torque application.
Applications
  • Used for fastening in thin-walled structural elements
  • Ideal for blind rivet connections combined with screw connections
  • Suitable for automotive, construction, and manufacturing industries
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Made from recyclable aluminium material
  • RoHS-compliant ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.

Available Now

Available for immediate purchase, ideal for industrial and construction fastening applications.
