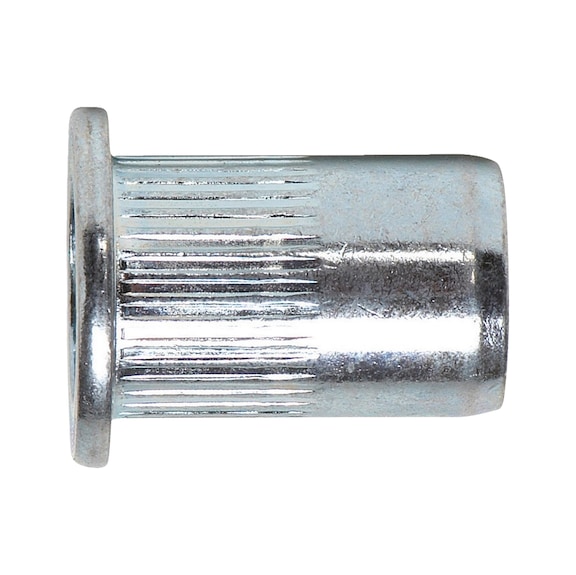

Rivet Nut with Flat Head & Knurled Shank | Aluminium Material | M8 Thread | Plain Surface Finish | @Pack of 10 | by Wurth
Rivet nut with flat head and knurled shank is designed for secure fastening in thin-walled materials. Made from lightweight aluminium, it features a plain surface finish and M8 thread, making it ideal for mechanical assembly and repair work. With a grip range of 0.5-3.0 mm, this rivet nut ensures strong screw joints, perfect for construction, automotive, and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | Aluminium Material | M8 Thread | Plain Surface Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 9482008
Alternatively Known As: Blind rivet nut, Rivnut, Nutsert, Threaded insert, Rivet insert nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- Thread type x nominal diameter: M8
- Length: 17.5 mm
- Head diameter: 15 mm
- Outer diameter: 10.9 mm
- Head height: 1.6 mm
- Grip range: 0.5-3.0 mm
- Tensile fracture load: 14700 N
- Shear-fracture load: 2450 N
- Max tightening torque: 14.6 Nm
- Drill hole diameter: 11.0 mm
- Shank detail: Knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 17.5mm x 17.5mm x 15mm
- Weight: 0.01 kg
Key Features
- Made of aluminium for lightweight and corrosion resistance
- Knurled shank for secure fastening in drilled holes
- Combines blind rivet and screw connection types
- Enables screw connections in thin-walled materials
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation requires proper drilling of hole and use of rivet nut tool; professional installation recommended for optimal fastening strength.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet connections combined with screw connections
- Ideal for mechanical assembly and repair work requiring strong screw joints
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Aluminium material is recyclable and lightweight, reducing environmental impact
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications in construction, automotive, and manufacturing industries.
