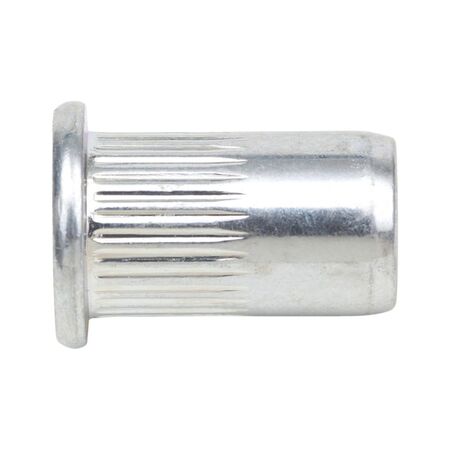

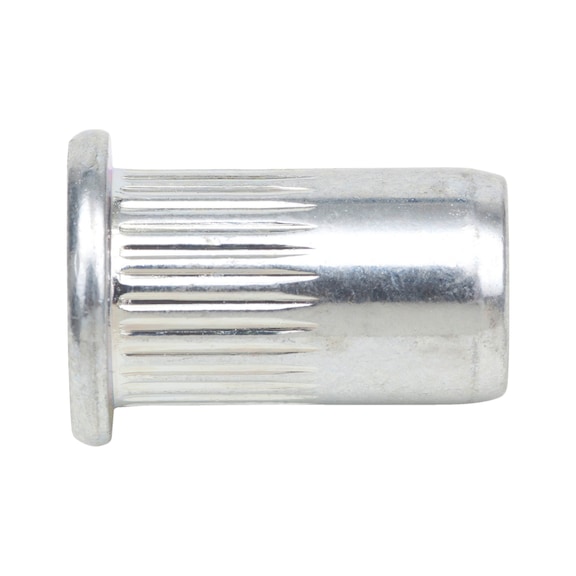

Rivet Nut with Flat Head & Knurled Shank | Stainless Steel A2 | Anti-Rotation Design | by Wurth
Rivet nut with flat head and knurled shank, made from durable stainless steel A2, is perfect for mechanical fastening in thin materials. Its dome head design and increased anti-rotation lock ensure secure fastening, making it ideal for automotive assembly, sheet metal fabrication, and furniture assembly. RoHS-compliant and designed for professional installation, this rivet nut is a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | Stainless Steel A2 | Anti-Rotation Design | by Wurth
Brand: Wurth
SKU: 9422006
Alternatively Known As: Knurled Shank Rivet Nut, Dome Head Rivet Nut, Stainless Steel Rivet Nut M6
Technical Specifications
- Material: Stainless steel A2
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M6
- Length (l1): 18.5 mm
- Head diameter (d1): 12.0 mm
- Outer diameter (d2): 8.9 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 3.0-5.5 mm
- Tensile fracture load: 20580 N
- Shear-fracture load: 5630 N
- Max. tightening torque: 22.2 Nm
- Drill hole diameter: 9.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 18.5mm x 12mm x 12mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel A2 for corrosion resistance
- Increased anti-rotation lock due to knurled shank
- Dome head design for secure fastening
Professional Installation Requirements
- Installation requires appropriate tools and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Mechanical fastening in thin materials
- Automotive assembly
- Sheet metal fabrication
- Electrical enclosures
- Furniture assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank is available now for immediate purchase. Ideal for industrial and mechanical fastening applications.
