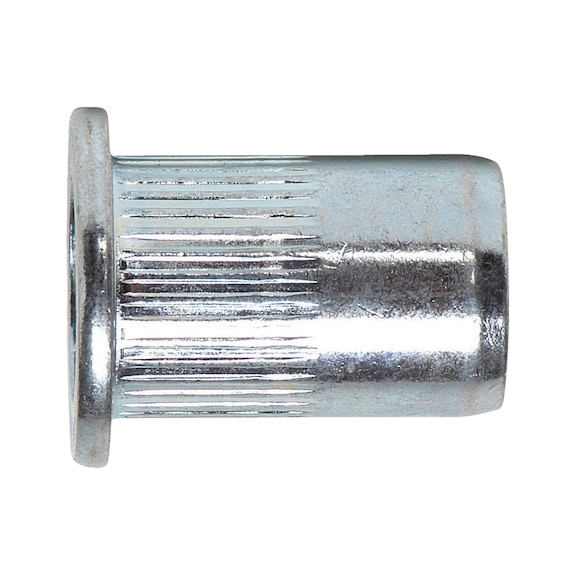

Rivet Nut with Flat Head & Knurled Shank | Zinc-Plated Steel | M5 | @Pack of 10 | by Wurth
Rivet nut with flat head and knurled shank is designed for secure fastening in thin-walled structural elements. Made from zinc-plated steel, it combines the benefits of a blind rivet and screw connection, making it ideal for use in automotive, construction, and manufacturing applications. With a tensile fracture load of 11070 N, this M5 nut ensures reliable performance across various materials, including aluminium, plastic, and fibreglass.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head & Knurled Shank | Zinc-Plated Steel | M5 | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 9482205
Alternatively Known As: Blind rivet nut, Rivnut, Nutsert, Threaded insert, Rivet insert nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes

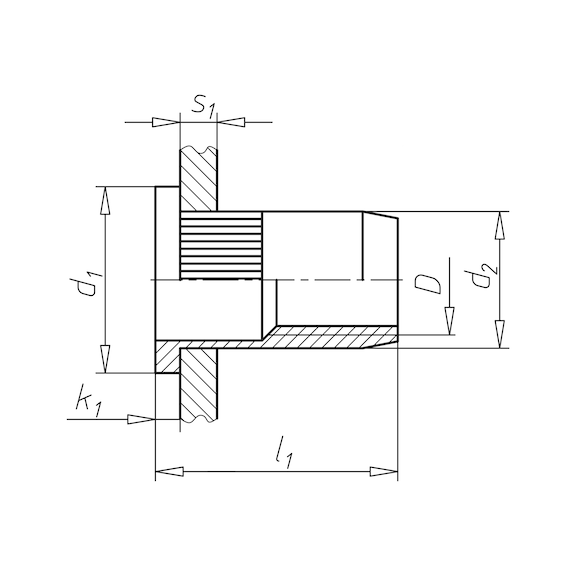

- Thread type x nominal diameter (D): M5
- Length (l1): 16 mm
- Head diameter (d1): 10.0 mm
- Outer diameter (d2): 6.9 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 3.1-4.0 mm
- Tensile fracture load: 11070 N
- Shear-fracture load: 2760 N
- Max. tightening torque: 7.8 Nm
- Drill hole diameter: 7.1 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 1.1mm x 16mm x 10mm
- Weight: 0.01 kg
Key Features
- Zinc-plated steel with blue passivation
- Chrome (VI)-free, compliant with EU End of Life Vehicles Directive

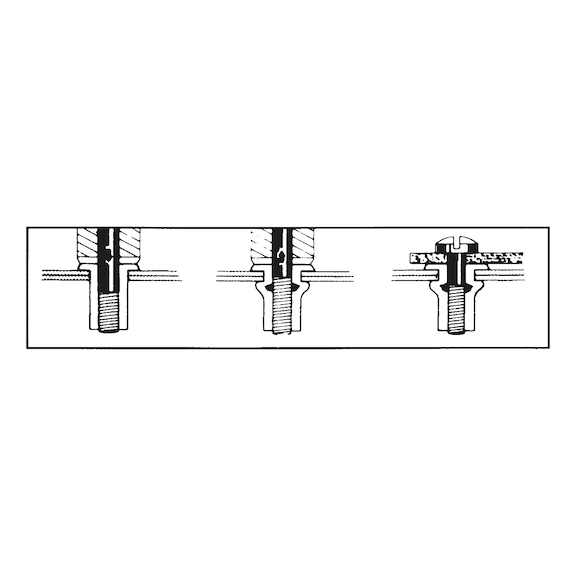

- Combines blind rivet and screw connection for secure fastening
- Knurled shaft increases tightening torque and resistance to turning
- Suitable for fastening all materials, especially aluminium, plastic, and fibreglass
Professional Installation Requirements
- Installation requires appropriate tools and trained personnel to ensure correct torque and secure fastening.
Applications
- Fastening in thin-walled structural elements
- Suitable for aluminium, plastic, and fibreglass materials
- Used in automotive, construction, and manufacturing industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome (VI)-free coating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with flat head and knurled shank M5 is available for immediate purchase. Ideal for fastening in thin-walled structural elements across automotive, construction, and manufacturing applications.
