Rivet Nut with Flat Head | Zinc-Plated Steel | Dome Head Design | @Pack of 25 | by Wurth
Rivet nut with flat head made from zinc-plated steel is perfect for secure rivet and screw connections in metal fabrication. With a dome head design and installation from one side, it’s ideal for closed profiles. This pack of 25 ensures you have enough for various applications, providing a twist-proof connection and improved profitability due to faster operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head | Zinc-Plated Steel | Dome Head Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 917240
Alternatively Known As: Rivet Nut Insert, Rivnut, Blind Nut, Threaded Insert Nut, Rivet Threaded Insert

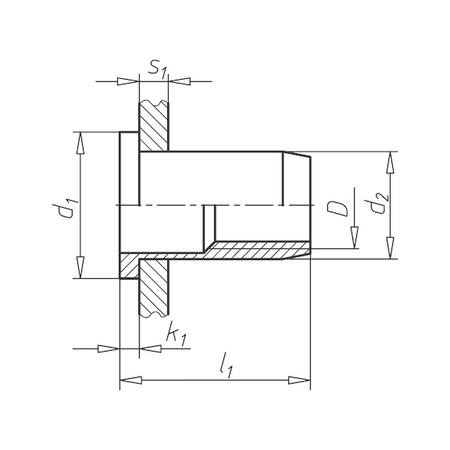

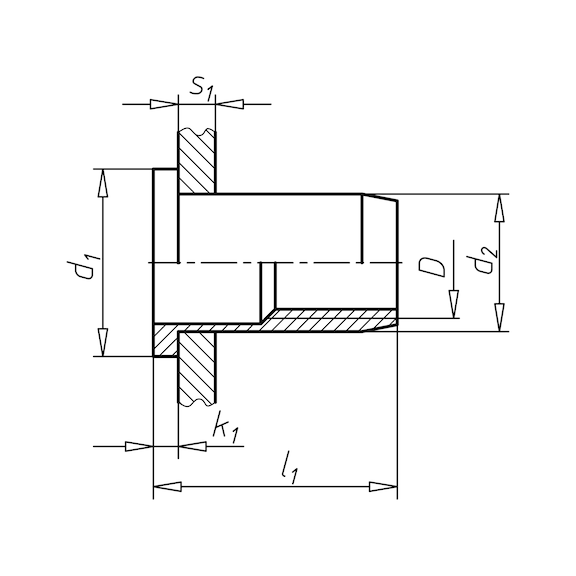

Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- Thread type x nominal diameter: M4
- Head diameter: 9.0 mm
- Outer diameter: 5.9 mm
- Length: 11.2 mm
- Head height: 0.8 mm
- Min./max. grip range: 0.3-2.0 mm
- Drill hole diameter: 6.0 mm
- Tensile fracture load: 6800 N
- Shear-fracture load: 2200 N
- Max. tightening torque: 3 Nm
- Head type: Dome head
- Dimensions (H x L x W): 11mm x 11mm x 9mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Dome head design
- Can be used as both rivet and screw connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drilled holes necessary
- Consistently high installation quality
- Twist-proof connection with load-bearing thread
- Improved profitability due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure and reliable fastening.
Applications
- Suitable for use in closed profiles where installation from one side is required
- Ideal for secure rivet and screw connections in metal fabrication
- Used for mounting additional components with standard screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Enables secure and reusable connections reducing material replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Flat Dome Head 25 PCS is available for immediate purchase. Ideal for metal fabrication, automotive, and industrial applications requiring secure threaded inserts.
