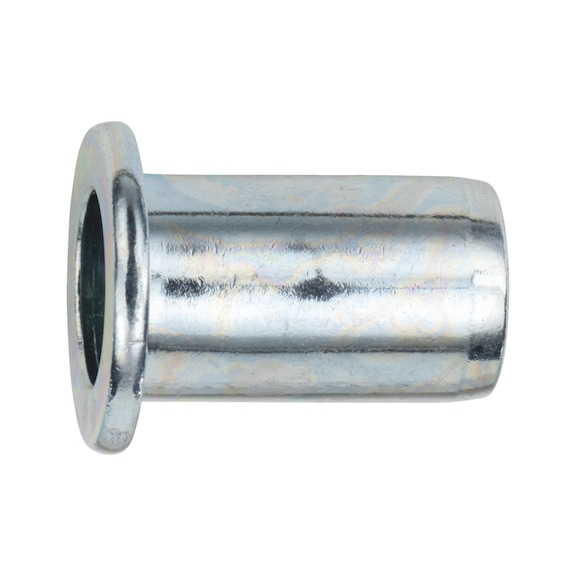

Rivet Nut with Flat Head | Zinc-Plated Steel | Dome Head Design | @Pack of 25 | by Wurth
Rivet nut with flat head made from zinc-plated steel is perfect for secure fastening in metal fabrication. With a dome head design, it allows for installation from one side, making it ideal for closed profiles. This pack of 25 ensures you have enough for various applications, providing a twist-proof connection and high installation quality for industrial and construction settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head | Zinc-Plated Steel | Dome Head Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 917250
Alternatively Known As: Rivet Nut Insert, Blind Rivet Nut, Threaded Insert Nut, Rivnut, Nutsert
Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- Thread type x nominal diameter (D): M5
- Head diameter (d1): 10.0 mm
- Outer diameter (d2): 6.9 mm
- Length (l1): 12.8 mm
- Head height (k1): 1.0 mm
- Min./max. grip range (s1): 0.7-3.0 mm
- Drill hole diameter: 7.0 mm
- Tensile fracture load: 10000 N
- Shear-fracture load: 3300 N
- Max. tightening torque: 6 Nm
- Head type: Dome head
- Dimensions (H x L x W): 13mm x 13mm x 10mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Dome head design for secure fastening
- Can be used as both rivet and screw connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drilled holes necessary
- Consistently high installation quality
- Twist-proof connection with load-bearing thread
- Improved profitability due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure secure and safe fastening.
Applications
- Suitable for use in closed profiles where installation from one side is required
- Ideal for secure rivet and screw connections in metal fabrication
- Used for mounting additional components with standard screws in industrial and construction settings
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Enables secure fastening reducing need for replacement and repairs
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Flat Dome Head 25 PCS is available for immediate purchase, ideal for industrial, construction, and metal fabrication applications.
