Trade Discount 20%

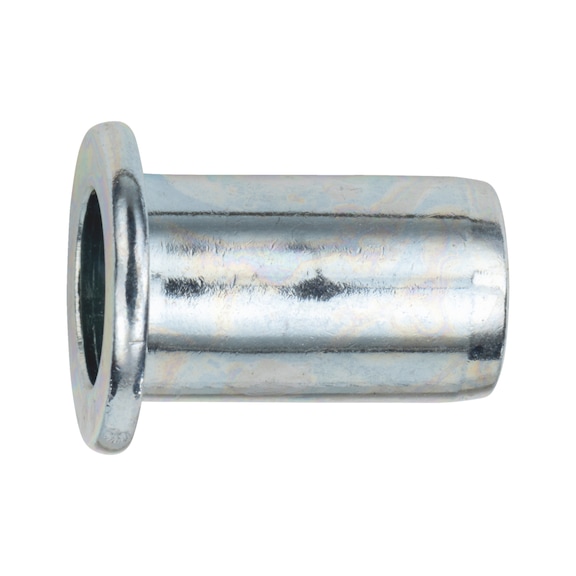

Rivet Nut with Flat Head | Zinc Plated Steel | M6 Thread | 25 PCS | by Wurth
Rivet nut with flat head made from zinc-plated steel, designed for secure threaded connections in metal fabrication. Ideal for applications requiring installation from one side, this 25 PCS set ensures consistent quality and fast installation without the need for countersinking. Perfect for professionals seeking reliable and durable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head | Zinc Plated Steel | M6 Thread | 25 PCS | by Wurth
Brand: Wurth
SKU: 917260
Alternatively Known As: Rivet Nut M6, Dome Head Rivet Nut, Zinc Plated Rivet Nut, Threaded Insert Nut, Blind Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- Thread type x nominal diameter (D): M6
- Head diameter (d1): 13.0 mm
- Outer diameter (d2): 8.9 mm
- Length (l1): 16 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Drill hole diameter: 9.0 mm
- Tensile fracture load: 15000 N
- Shear-fracture load: 4400 N
- Max. tightening torque: 10 Nm
- Head type: Dome head
- Dimensions (H x L x W): 16mm x 16mm x 13mm
- Weight: 0.1 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Can be used as both rivet and screw connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drilled holes necessary
- Consistently high installation quality
- Twist-proof connection with load-bearing thread
- Improved profitability due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure secure and reliable fastening.
Applications
- Suitable for use in closed profiles requiring installation from one side
- Ideal for secure rivet and screw connections in metal fabrication
- Used for mounting additional components with standard screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Enables secure connections reducing need for replacement parts
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Flat Dome Head 25 PCS is available for immediate purchase, ideal for metal fabrication and assembly applications requiring secure threaded connections.
