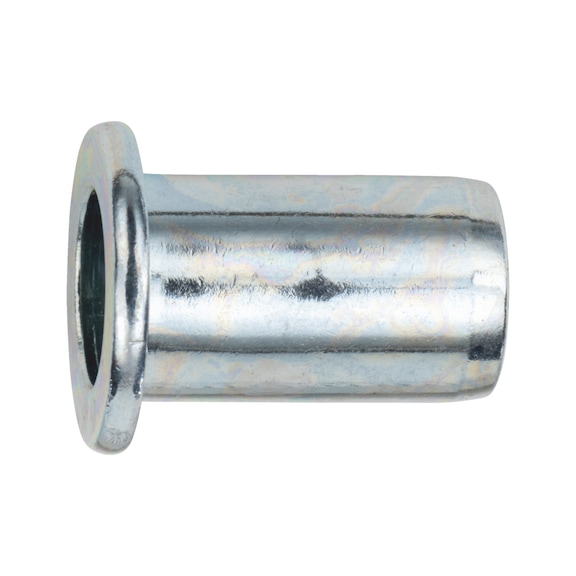

Rivet Nut with Flat Head | Zinc Plated Steel | M8 Dome Head | @Pack of 25 | by Wurth
Rivet nut with flat head designed for secure fastening in metalworking and fabrication. Made from zinc-plated steel, these M8 dome head nuts provide corrosion resistance and can be installed from one side, making them ideal for closed profiles. Perfect for automotive, construction, and industrial assembly, they ensure strong threaded connections with high installation quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Flat Head | Zinc Plated Steel | M8 Dome Head | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 917280
Alternatively Known As: Rivet Nut Insert, Rivnut, Threaded Insert Nut, Blind Rivet Nut, Nutsert
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- Thread type x nominal diameter (D): M8
- Head diameter (d1): 15.0 mm
- Outer diameter (d2): 10.9 mm
- Length (l1): 18 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 0.5-3.5 mm
- Drill hole diameter: 11.0 mm
- Tensile fracture load: 22000 N
- Shear-fracture load: 5200 N
- Max. tightening torque: 25 Nm
- Head type: Dome head
- Dimensions (H x L x W): 18mm x 18mm x 15mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Dome head design for secure fastening
- Can be used as both rivet and screw connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drilled holes necessary
- Consistently high installation quality
- Twist-proof connection with load-bearing thread
- Improves profitability with faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure and reliable fastening.
Applications
- Suitable for secure rivet and screw connections in metalworking and fabrication
- Ideal for installation in closed profiles and thin sheet metal
- Used in automotive, construction, and industrial assembly requiring strong threaded inserts
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Enables repair and reuse of components by providing strong threaded connections
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Rivet Nut with Flat Dome Head M8 Zinc Plated Steel 25 PCS is available for immediate purchase, ideal for metal fabrication and assembly applications requiring strong threaded inserts.
