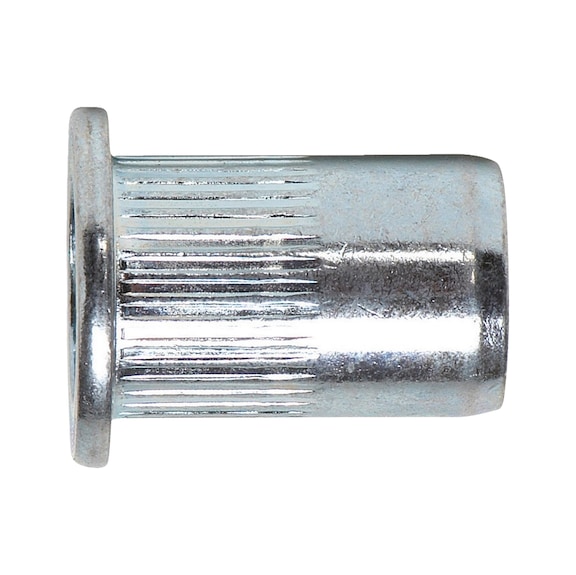

Rivet Nut M10 with Flat Head & Knurled Shank | Aluminium | 10 PCS | by Wurth
Rivet nut M10 with a flat head and knurled shank is perfect for fastening in thin-walled materials. Made from lightweight aluminium, it offers corrosion resistance and combines blind rivet and screw connections for secure fastening. Ideal for automotive, construction, and manufacturing applications, this product ensures reliable performance in structural elements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M10 with Flat Head & Knurled Shank | Aluminium | 10 PCS | by Wurth
Brand: Wurth
SKU: 94820010
Alternatively Known As: Rivet Nut M10, Blind Rivet Nut, Knurled Shank Rivet Nut, Aluminium Rivet Nut, Dome Head Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes

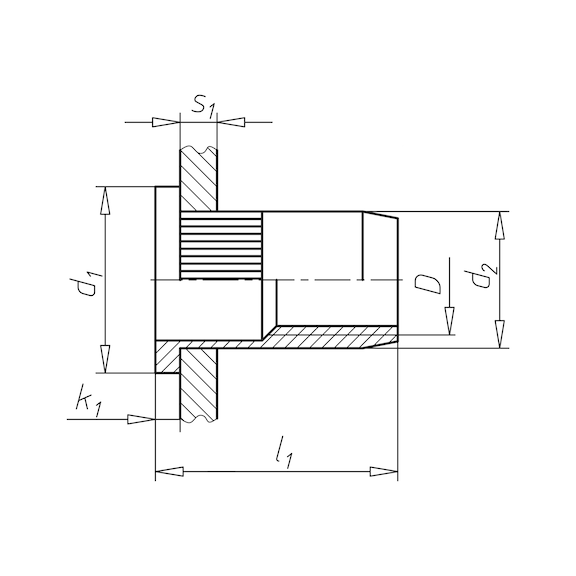

- Thread type x nominal diameter (D): M10
- Length (l1): 19 mm
- Head diameter (d1): 16 mm
- Outer diameter (d2): 11.9 mm
- Head height (k1): 2.1 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 21500 N
- Shear-fracture load: 3820 N
- Max. tightening torque: 20 Nm
- Drill hole diameter: 12.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 19mm x 19mm x 16mm
- Weight: 0.01 kg
Key Features
- Made from aluminium for lightweight and corrosion resistance
- Combines blind rivet connection with additional screw connection
- Knurled shank for secure fastening
- Enables screw connections in thin-walled materials
- Dome head design
Professional Installation Requirements
- Installation requires proper drilling and setting tools; professional installation recommended to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for applications requiring blind rivet and screw connections
- Ideal for automotive, construction, and manufacturing industries
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from recyclable aluminium material
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M10 Aluminium is available now for immediate purchase. Ideal for structural fastening in thin-walled materials.
