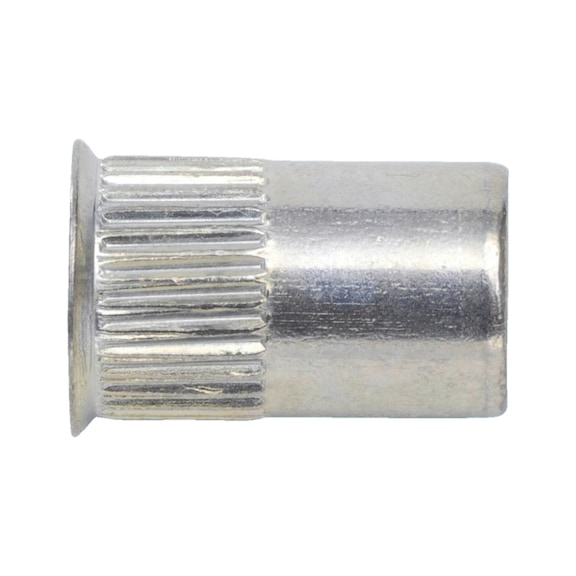

Rivet Nut M10 | Small Countersunk Head & Knurled Shank | Zinc Plated Steel | @Pack of 25 | by Wurth
Rivet nut M10 with a small countersunk head and knurled shank is perfect for secure fastening in closed profiles. Made from zinc-plated steel, it ensures durability and compliance with RoHS standards. Ideal for industrial and construction applications, this nut allows for simple, fast installation from one side without the need for countersinking drill holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M10 | Small Countersunk Head & Knurled Shank | Zinc Plated Steel | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 9177100
Alternatively Known As: Rivet Nut M10, Countersunk Rivet Nut, Knurled Shank Rivet Nut, Threaded Insert Nut

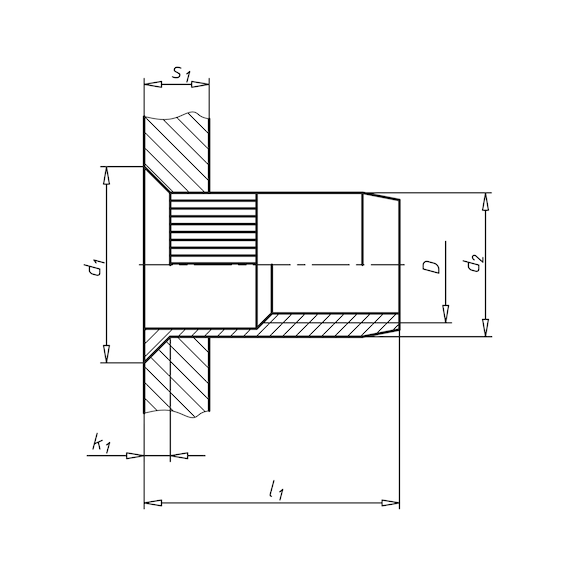

Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M10
- Length (l1): 16.5 mm
- Head diameter (d1): 13.0 mm
- Outer diameter (d2): 11.9 mm
- Head height (k1): 0.6 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 32000 N
- Shear-fracture load: 7000 N
- Max. tightening torque: 48 Nm
- Drill hole diameter: 12.0 mm
- Shank detail: With knurled shank
- Head type: Small countersunk head
- Dimensions (H x L x W): 0.6mm x 16.5mm x 13mm
- Weight: 0.02 kg
Key Features
- Zinc-plated steel with blue passivation
- Small countersunk head and knurled shank
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency with faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure secure and reliable fastening.
Applications
- Suitable for riveted and screwed connections
- Installation from one side, ideal for closed profiles
- Mounting additional components using conventional screws
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Rivet Nut with Small Countersunk Head and Knurled Shank M10 is available for immediate purchase, ideal for industrial and construction fastening applications.
