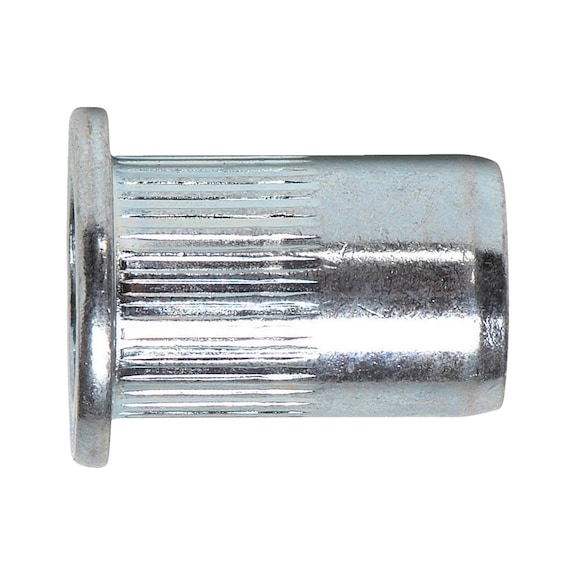

Rivet Nut M4 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Rivet nut M4 Aluminium with a flat head and knurled shank is perfect for fastening in thin-walled structural elements. Designed for automotive, construction, and industrial assembly tasks, it combines the benefits of blind rivet and screw connections for secure fastening. Lightweight and corrosion-resistant, this 10-pack ensures you have the right components for your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M4 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Brand: Wurth
SKU: 9482204
Alternatively Known As: Rivet Nut M4 Aluminium, Knurled Shank Rivet Nut, Blind Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M4
- Length (l1): 14 mm
- Head diameter (d1): 9.0 mm
- Outer diameter (d2): 5.9 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 3.0-5.5 mm
- Tensile fracture load: 2840 N
- Shear-fracture load: 1070 N
- Max. tightening torque: 4 Nm
- Drill hole diameter: 6.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 14mm x 14mm x 9mm
- Weight: 0.01 kg
Key Features
- Made of aluminium for lightweight and corrosion resistance
- Knurled shank for secure grip in the material
- Combines blind rivet and screw connection fastening methods
- Enables screw connections in thin-walled structural elements
Professional Installation Requirements
- Installation requires appropriate tools for blind rivet nuts and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet and screw connections in metal fabrication
- Ideal for automotive, construction, and industrial assembly tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from recyclable aluminium material
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M4 Aluminium 10 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
