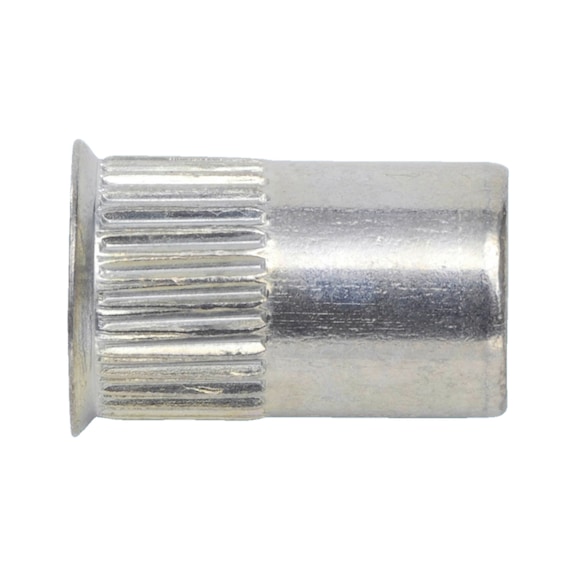

Rivet Nut M4 | Zinc-Plated Steel | Small Countersunk Head & Knurled Shank | @Pack of 25 | by Wurth
Rivet nut M4 with a small countersunk head and knurled shank is perfect for creating secure connections in metalwork. Made from zinc-plated steel, it offers corrosion resistance and is ideal for installation in closed profiles and thin sheet metal. Designed for fast, one-sided installation, this rivet nut ensures high-quality fastening in automotive, construction, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M4 | Zinc-Plated Steel | Small Countersunk Head & Knurled Shank | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 917740
Alternatively Known As: Rivet Nut M4, Countersunk Rivet Nut, Knurled Shank Rivet Nut, Blind Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M4
- Length (l1): 10 mm
- Head diameter (d1): 8 mm
- Outer diameter (d2): 5.9 mm
- Head height (k1): 0.45 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Drill hole diameter: 6 mm
- Shank detail: With knurled shank
- Head type: Small countersunk head
- Dimensions (H x L x W): 10mm x 10mm x 8mm
- Weight: 0.01 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Small countersunk head design for flush mounting
- Knurled shank to prevent rotation in the hole
- Installation from one side, suitable for closed profiles
- No countersinking of drill holes necessary
- Anti-rotation connection with load-bearing thread
- Simple, fast, and mostly automatic installation
- Consistently high installation quality
- Improved efficiency with faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut installation tools to ensure secure and consistent fastening.
Applications
- Suitable for creating riveted and screwed connections in metalwork
- Ideal for installation in closed profiles and thin sheet metal
- Used in automotive, construction, and industrial assembly applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Zinc-Plated Steel Rivet Nut with Small Countersunk Head and Knurled Shank M4 is available for immediate purchase, ideal for industrial and construction fastening applications.
