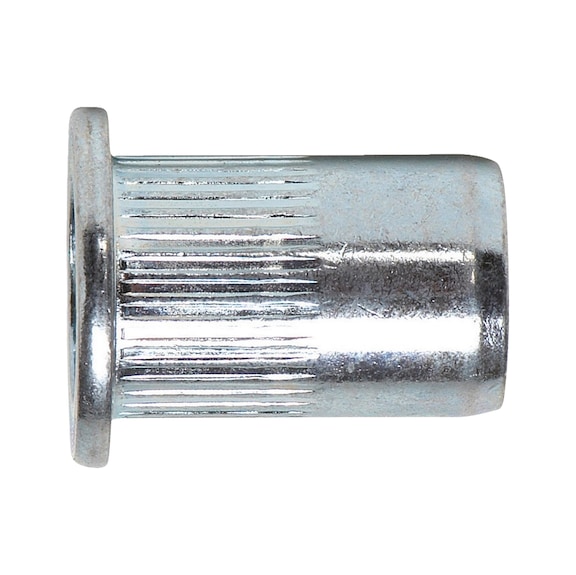

Rivet Nut M5 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Rivet nut M5 Aluminium with a flat head and knurled shank is perfect for fastening in thin-walled structural elements. Designed for blind rivet and screw connections, it offers lightweight durability and corrosion resistance, making it ideal for automotive, construction, and manufacturing applications. With a tensile fracture load of 4900 N, this rivet nut ensures secure fastening in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M5 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Brand: Wurth
SKU: 9482005
Alternatively Known As: Rivet Nut M5 Aluminium, Blind Rivet Nut, Knurled Shank Rivet Nut, Dome Head Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M5
- Length (l1): 13 mm
- Head diameter (d1): 10.0 mm
- Outer diameter (d2): 6.9 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 4900 N
- Shear-fracture load: 1170 N
- Max. tightening torque: 5 Nm
- Drill hole diameter: 7.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 13mm x 13mm x 10mm
- Weight: 0.01 kg
Key Features
- Made from aluminium for lightweight and corrosion resistance
- Combines blind rivet connection with additional screw connection
- Knurled shank for secure fastening
- Enables screw connections in thin-walled materials
- Dome head design
Professional Installation Requirements
- Installation should be performed by a qualified technician using appropriate tools to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet and screw connection applications
- Ideal for automotive, construction, and manufacturing industries
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Aluminium material is recyclable and lightweight, reducing environmental impact
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M5 Aluminium is available now for immediate purchase. Ideal for structural fastening in thin-walled materials.
