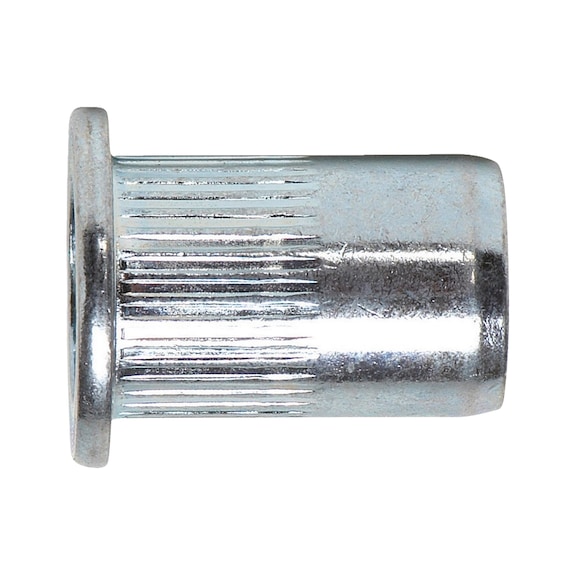

Rivet Nut M5 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Rivet nut M5 aluminium with a flat head and knurled shank is perfect for fastening in thin-walled structural elements. Designed for secure fastening and anti-rotation, this 10-pack is ideal for mechanical assembly and repair work, ensuring strong screw joints in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M5 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Brand: Wurth
SKU: 9482205
Alternatively Known As: Rivet Nut M5 Aluminium, Knurled Shank Rivet Nut, Blind Rivet Nut, Threaded Insert Nut, Dome Head Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M5
- Length (l1): 16 mm
- Head diameter (d1): 10.0 mm
- Outer diameter (d2): 6.9 mm
- Head height (k1): 1.1 mm
- Min./max. grip range (s1): 3.0-5.5 mm
- Tensile fracture load: 4900 N
- Shear-fracture load: 1170 N
- Max. tightening torque: 5 Nm
- Drill hole diameter: 7.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 1.1mm x 16mm x 10mm
- Weight: 0.01 kg
Key Features
- Made from aluminium for lightweight and corrosion resistance
- Knurled shank for secure fastening and anti-rotation
- Combines blind rivet and screw connection types
- Enables screw connections in thin-walled materials
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation requires appropriate tools for blind rivet nuts and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet connections combined with screw connections
- Ideal for mechanical assembly and repair work requiring strong screw joints
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from recyclable aluminium material
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M5 Aluminium is available now for immediate purchase. Ideal for mechanical fastening in thin-walled structural applications.
