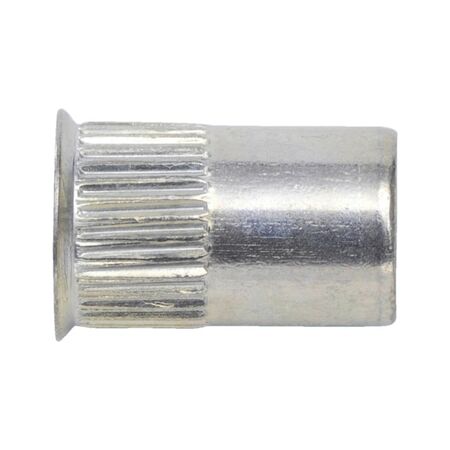

Rivet Nut M5 | Zinc-Plated Steel | Small Countersunk Head & Knurled Shank | @Pack of 25 | by Wurth
Rivet nut M5 with a small countersunk head and knurled shank is perfect for metal fabrication and assembly. Made from zinc-plated steel, it offers excellent corrosion resistance and a secure, anti-rotation connection. Ideal for closed profiles, this nut ensures high installation quality and efficiency, making it a reliable choice for automotive and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M5 | Zinc-Plated Steel | Small Countersunk Head & Knurled Shank | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 917750
Alternatively Known As: Rivet Nut M5, Countersunk Rivet Nut, Knurled Shank Rivet Nut, Blind Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Thread type x nominal diameter: M5
- Length: 12 mm
- Head diameter: 8.0 mm
- Outer diameter: 6.9 mm
- Head height: 0.50 mm
- Grip range: 0.5-3.0 mm
- Tensile fracture load: 10000 N
- Shear-fracture load: 3300 N
- Max. tightening torque: 6 Nm
- Drill hole diameter: 7 mm
- Shank detail: Knurled shank
- Head type: Small countersunk head
- Dimensions (H x L x W): 12mm x 12mm x 8mm
- Weight: 0.02 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Small countersunk head design
- Knurled shank for anti-rotation connection
- Installation from one side, suitable for closed profiles
- No countersinking of drill holes necessary
- Consistently high installation quality
- Load-bearing threaded connection
- Simple, fast, and mostly automatic installation
- Improved efficiency with secure and high-quality connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut installation tools to ensure secure and reliable fastening.
Applications
- Suitable for use in closed profiles
- Ideal for riveted and screwed connections
- Mounting additional components using conventional screws
- Installation from one side in metal fabrication and assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Zinc-Plated Steel Rivet Nut with Small Countersunk Head and Knurled Shank M5 is available for immediate purchase, ideal for metal fabrication, automotive, and industrial assembly applications.
