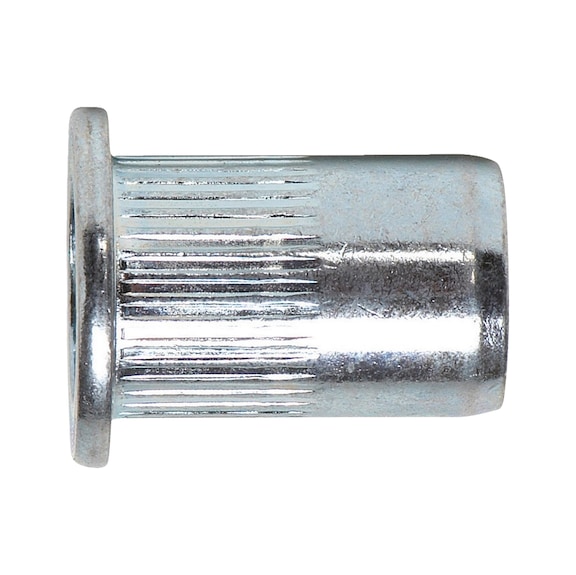

Rivet Nut M6 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Rivet nut M6 Aluminium with a flat head and knurled shank is perfect for fastening in thin-walled structural elements. Designed for secure fastening, it combines the benefits of blind rivet and screw connections, making it ideal for automotive, construction, and manufacturing applications. Lightweight and corrosion-resistant, this product ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M6 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Brand: Wurth
SKU: 9482006
Alternatively Known As: Rivet Nut M6 Aluminium, Blind Rivet Nut, Knurled Shank Rivet Nut, Dome Head Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes

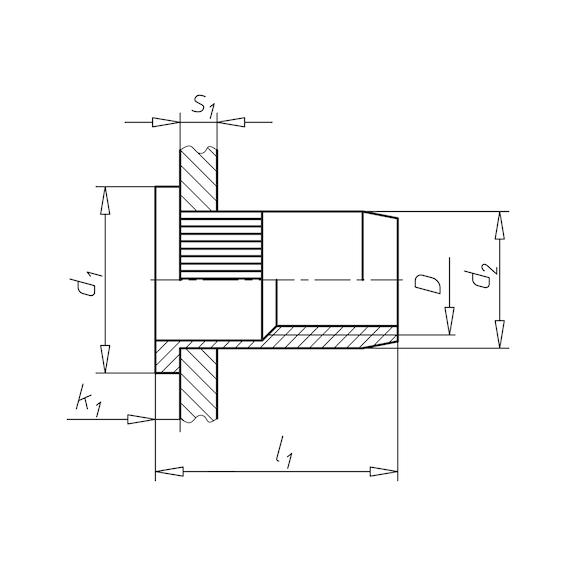

- Thread type x nominal diameter (D): M6
- Length (l1): 16 mm
- Head diameter (d1): 12 mm
- Outer diameter (d2): 8.9 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 9300 N
- Shear-fracture load: 2280 N
- Max. tightening torque: 11.3 Nm
- Drill hole diameter: 9.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 1.6mm x 16mm x 12mm
- Weight: 0.005 kg
Key Features
- Made of aluminium for lightweight and corrosion resistance
- Knurled shank for secure fastening
- Combines blind rivet and screw connection types
- Enables screw connections in thin-walled materials
- Guideline values for maximum tractive force and tightening torque
Professional Installation Requirements
- Installation requires appropriate tools for blind rivet nuts and should be performed by trained personnel to ensure correct torque and secure fastening.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet connections combined with screw connections
- Ideal for automotive, construction, and manufacturing industries
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from recyclable aluminium material
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Rivet Nut with Flat Head and Knurled Shank M6 Aluminium is available for immediate purchase. Ideal for use in thin-walled structural fastening applications.
